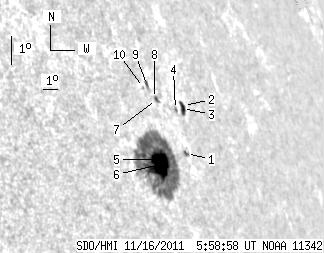

SDO HMI 2011-11-16 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.50 | 204.24 | 36.48 | 224.91 | 16.12 | 63.73 | 63.10 | 286.67 | 0.8961 | -553.6 | -249.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 2.49 | 2.43 | 2.94 | 16.22 | 65.60 | 64.97 | 286.61 | 0.9097 | -311.8 | -203.4 | |
| 0.26 | 5.67 | 0.32 | 6.89 | 17.67 | 66.35 | 65.72 | 288.13 | 0.9156 | 188.7 | -68.1 | |
| 3.78 | -2.00 | 4.59 | -2.00 | 17.59 | 66.21 | 65.58 | 288.05 | 0.9147 | -304.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.15 | 17.58 | 65.68 | 65.05 | 288.09 | 0.9110 | -388.0 | -388.5 | |
| 1.98 | 187.74 | 2.21 | 205.51 | 16.10 | 64.09 | 63.46 | 286.61 | 0.8988 | 253.9 | -257.0 | |
| 22.78 | -5.00 | 25.06 | -5.00 | 15.97 | 63.53 | 62.90 | 286.52 | 0.8946 | -839.5 | 999999 | |
| 1.12 | 2.66 | 1.28 | 3.05 | 17.94 | 64.53 | 63.90 | 288.60 | 0.9033 | 119.0 | 11.4 | |
| 0.52 | -7.00 | 0.59 | -7.00 | 17.97 | 64.41 | 63.78 | 288.65 | 0.9025 | -48.0 | 999999 | |
| 0.00 | 2.92 | 0.00 | 3.31 | 18.38 | 64.19 | 63.56 | 289.13 | 0.9012 | -2.0 | -84.5 | |
| 0.00 | 0.95 | 0.00 | 1.06 | 18.34 | 63.88 | 63.25 | 289.11 | 0.8989 | 238.0 | 163.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
