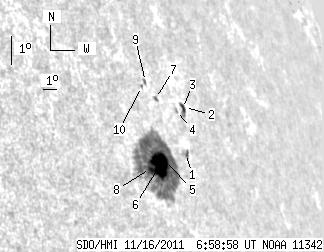

SDO HMI 2011-11-16 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.59 | 210.61 | 34.77 | 236.06 | 16.11 | 63.72 | 63.64 | 286.61 | 0.9002 | -569.1 | -243.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.90 | 0.00 | 5.91 | 16.25 | 65.59 | 65.51 | 286.61 | 0.9134 | -568.0 | -268.6 | |
| 1.03 | 6.02 | 1.29 | 7.48 | 17.64 | 66.47 | 66.38 | 288.04 | 0.9200 | 178.3 | -310.3 | |
| 2.66 | -2.00 | 3.31 | -2.00 | 17.62 | 66.29 | 66.21 | 288.03 | 0.9189 | -290.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.20 | 17.57 | 65.80 | 65.72 | 288.03 | 0.9156 | -538.0 | -440.3 | |
| 2.41 | 192.81 | 2.74 | 214.61 | 16.10 | 64.03 | 63.95 | 286.57 | 0.9024 | 296.1 | -250.8 | |
| 22.95 | -5.00 | 25.71 | -5.00 | 15.97 | 63.53 | 63.45 | 286.47 | 0.8987 | -820.9 | 999999 | |
| 0.34 | 2.15 | 0.40 | 2.51 | 18.00 | 64.53 | 64.44 | 288.62 | 0.9072 | 97.5 | -2.9 | |
| 1.20 | -5.00 | 1.32 | -5.00 | 15.91 | 62.88 | 62.79 | 286.46 | 0.8938 | -905.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.88 | 18.54 | 64.18 | 64.09 | 289.25 | 0.9052 | 312.0 | 254.4 | |
| 0.00 | 1.29 | 0.00 | 1.47 | 18.40 | 63.80 | 63.71 | 289.14 | 0.9023 | 247.0 | 210.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
