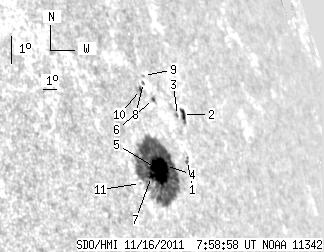

SDO HMI 2011-11-16 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.62 | 201.38 | 33.08 | 230.18 | 16.14 | 63.71 | 64.17 | 286.60 | 0.9040 | -581.0 | -221.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 2.87 | 16.19 | 65.76 | 66.22 | 286.48 | 0.9182 | -376.0 | -261.8 | |
| 2.75 | 5.84 | 3.50 | 7.45 | 17.58 | 66.35 | 66.81 | 287.95 | 0.9228 | -291.0 | -158.1 | |
| 0.00 | 1.38 | 0.00 | 1.72 | 17.57 | 65.94 | 66.40 | 287.97 | 0.9201 | -485.0 | -402.6 | |
| 1.89 | 183.08 | 2.20 | 207.95 | 16.10 | 64.06 | 64.52 | 286.53 | 0.9065 | 304.0 | -234.0 | |
| 21.14 | -4.00 | 24.14 | -4.00 | 15.97 | 63.55 | 64.01 | 286.43 | 0.9028 | -820.3 | 999999 | |
| 0.43 | 1.81 | 0.51 | 2.15 | 18.13 | 64.51 | 64.97 | 288.71 | 0.9109 | -63.2 | -41.4 | |
| 1.38 | -4.00 | 1.53 | -4.00 | 15.81 | 62.89 | 63.35 | 286.31 | 0.8979 | -826.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.91 | 18.67 | 64.15 | 64.62 | 289.34 | 0.9089 | 354.0 | 314.4 | |
| 0.00 | 0.77 | 0.00 | 0.92 | 18.88 | 64.31 | 64.77 | 289.56 | 0.9101 | 216.0 | 166.4 | |
| 1.03 | 4.81 | 1.20 | 5.56 | 18.47 | 63.79 | 64.25 | 289.16 | 0.9062 | 198.8 | 148.7 | |
| 0.00 | 0.60 | 0.00 | 0.65 | 15.63 | 62.04 | 62.50 | 286.19 | 0.8914 | -624.0 | -598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
