SDO HMI 2011-11-16 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.57 | 156.75 | 32.06 | 138.89 | 9.37 | 54.85 | 55.86 | 279.50 | 0.8290 | -105.5 | -141.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

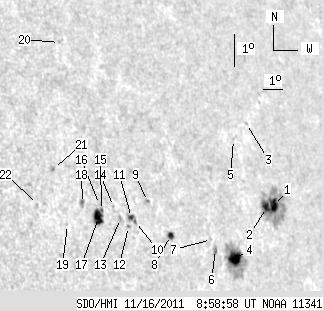

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.45 | 65.40 | 6.11 | 61.99 | 9.82 | 57.53 | 58.53 | 279.84 | 0.8551 | -614.4 | -151.1 | |
| 3.61 | -1.00 | 3.38 | -1.00 | 9.77 | 57.05 | 58.06 | 279.82 | 0.8508 | -918.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.12 | 12.32 | 56.71 | 57.71 | 282.84 | 0.8492 | -546.0 | -473.9 | |
| 10.66 | 49.68 | 9.42 | 43.92 | 8.33 | 54.92 | 55.93 | 278.21 | 0.8303 | -822.2 | -316.7 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 11.87 | 55.82 | 56.83 | 282.39 | 0.8408 | -568.0 | -464.1 | |
| 0.00 | 2.84 | 0.00 | 2.45 | 8.64 | 53.97 | 54.98 | 278.64 | 0.8212 | -682.0 | -561.2 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 8.94 | 53.83 | 54.84 | 279.02 | 0.8199 | -452.0 | -430.9 | |
| 3.27 | 4.38 | 2.68 | 3.60 | 9.14 | 51.78 | 52.78 | 279.40 | 0.7992 | -576.3 | -332.3 | |
| 0.00 | 1.80 | 0.00 | 1.45 | 10.19 | 50.87 | 51.88 | 280.81 | 0.7906 | 435.0 | 387.0 | |
| 1.03 | 6.10 | 0.82 | 4.82 | 9.62 | 50.16 | 51.17 | 280.15 | 0.7825 | 308.4 | 385.4 | |
| 2.15 | -10.00 | 1.70 | -10.00 | 9.74 | 49.99 | 51.00 | 280.32 | 0.7809 | 583.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.15 | 9.48 | 49.80 | 50.80 | 280.01 | 0.7785 | 579.0 | 474.9 | |
| 0.00 | 1.46 | 0.00 | 1.14 | 9.73 | 49.47 | 50.47 | 280.36 | 0.7751 | 714.0 | 561.7 | |
| 0.00 | 1.03 | 0.00 | 0.80 | 10.10 | 49.21 | 50.22 | 280.87 | 0.7727 | 557.0 | 400.2 | |
| 0.34 | 12.81 | 0.26 | 9.79 | 10.00 | 48.63 | 49.63 | 280.80 | 0.7662 | 472.0 | 476.3 | |
| 0.00 | 0.34 | 0.00 | 0.26 | 10.18 | 48.57 | 49.58 | 281.04 | 0.7658 | 390.0 | 398.8 | |
| 10.06 | -15.00 | 7.69 | -15.00 | 9.80 | 48.45 | 49.45 | 280.55 | 0.7640 | 756.2 | 999999 | |
| 0.00 | 3.35 | 0.00 | 2.53 | 10.24 | 47.80 | 48.80 | 281.21 | 0.7572 | 701.0 | 521.6 | |
| 0.00 | 0.43 | 0.00 | 0.32 | 9.64 | 46.99 | 48.00 | 280.51 | 0.7475 | 538.0 | 473.4 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 15.11 | 47.99 | 49.00 | 287.53 | 0.7664 | 452.0 | 374.2 | |
| 0.00 | 1.20 | 0.00 | 0.89 | 11.33 | 46.71 | 47.72 | 282.81 | 0.7462 | 667.0 | 613.4 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 10.28 | 45.78 | 46.78 | 281.53 | 0.7342 | 741.0 | 587.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
