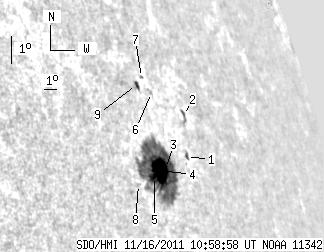

SDO HMI 2011-11-16 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.23 | 175.37 | 33.15 | 212.52 | 16.13 | 63.66 | 65.76 | 286.47 | 0.9150 | -513.6 | -192.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 2.49 | 1.71 | 3.32 | 16.32 | 65.88 | 67.98 | 286.51 | 0.9295 | -213.6 | -140.0 | |
| 0.00 | 4.30 | 0.00 | 5.91 | 17.56 | 66.58 | 68.68 | 287.79 | 0.9343 | -301.0 | -190.1 | |
| 2.92 | 160.16 | 3.60 | 193.06 | 16.03 | 63.99 | 66.09 | 286.33 | 0.9173 | 284.0 | -201.1 | |
| 19.59 | -3.00 | 23.69 | -3.00 | 15.99 | 63.51 | 65.61 | 286.32 | 0.9140 | -771.0 | 999999 | |
| 1.63 | -3.00 | 1.94 | -3.00 | 15.83 | 63.03 | 65.13 | 286.18 | 0.9106 | -938.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.42 | 18.36 | 64.56 | 66.66 | 288.81 | 0.9223 | 48.0 | -34.5 | |
| 0.00 | 1.20 | 0.00 | 1.50 | 18.85 | 64.15 | 66.25 | 289.37 | 0.9199 | 386.0 | 328.4 | |
| 0.00 | 1.72 | 0.00 | 1.95 | 15.63 | 61.76 | 63.86 | 286.07 | 0.9015 | -382.0 | -379.2 | |
| 1.80 | 4.38 | 2.21 | 5.36 | 18.65 | 63.61 | 65.71 | 289.21 | 0.9163 | 270.0 | 25.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
