SDO HMI 2011-11-16 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.65 | 119.09 | 16.26 | 89.45 | 28.36 | 41.42 | 43.52 | 306.24 | 0.7537 | -860.4 | -265.3 | |
|
previous
or next observation for the same group /

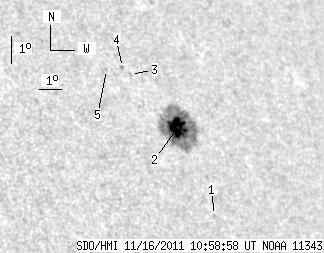

back to the solar disc SDO HMI 2011-11-16 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.57 | 25.42 | 41.76 | 43.86 | 302.45 | 0.7440 | -496.0 | -447.1 | |
| 21.65 | 114.62 | 16.26 | 86.13 | 28.32 | 41.46 | 43.56 | 306.17 | 0.7539 | -947.7 | -258.2 | |
| 0.00 | 1.46 | 0.00 | 1.09 | 30.12 | 40.22 | 42.32 | 308.96 | 0.7513 | -527.0 | -416.3 | |
| 0.00 | 1.55 | 0.00 | 1.15 | 30.37 | 39.98 | 42.08 | 309.38 | 0.7504 | -445.0 | -375.3 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 30.32 | 39.22 | 41.32 | 309.72 | 0.7433 | -554.0 | -463.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
