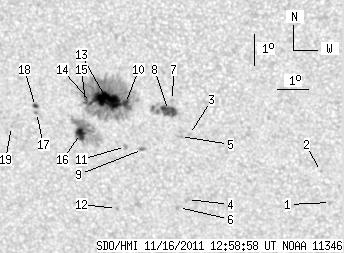

SDO HMI 2011-11-16 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.69 | 269.11 | 29.77 | 149.45 | -18.17 | 339.54 | -17.27 | 141.52 | 0.4551 | 724.2 | 352.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | -20.99 | 346.44 | -10.36 | 157.29 | 0.4368 | 686.0 | 582.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.99 | 346.19 | -10.61 | 155.81 | 0.4241 | 645.0 | 478.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -18.85 | 342.06 | -14.74 | 146.66 | 0.4401 | 781.0 | 601.5 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -20.94 | 341.79 | -15.01 | 148.82 | 0.4692 | 204.0 | 282.4 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -18.92 | 341.76 | -15.04 | 146.23 | 0.4435 | 753.0 | 664.3 | |
| 0.00 | 1.98 | 0.00 | 1.11 | -21.21 | 341.47 | -15.34 | 148.60 | 0.4752 | 693.0 | 580.0 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -17.78 | 341.61 | -15.20 | 144.39 | 0.4305 | 511.0 | 347.2 | |
| 11.17 | 21.30 | 6.14 | 11.72 | -18.10 | 341.45 | -15.36 | 144.56 | 0.4360 | 1033.0 | 771.4 | |
| 0.00 | 2.66 | 0.00 | 1.48 | -19.35 | 340.48 | -16.32 | 144.65 | 0.4603 | 855.0 | 676.5 | |
| 2.32 | 176.87 | 1.28 | 98.00 | -17.90 | 340.07 | -16.73 | 141.95 | 0.4464 | 1089.6 | 446.7 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -19.27 | 339.93 | -16.87 | 143.65 | 0.4642 | 833.0 | 687.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -21.27 | 339.41 | -17.40 | 145.43 | 0.4932 | 671.0 | 505.6 | |
| 28.69 | -10.00 | 15.90 | -10.00 | -17.81 | 339.50 | -17.31 | 140.90 | 0.4510 | 1219.9 | 999999 | |
| 0.77 | -10.00 | 0.43 | -10.00 | -17.88 | 338.97 | -17.84 | 140.17 | 0.4571 | 653.4 | 999999 | |
| 1.55 | -10.00 | 0.86 | -10.00 | -17.85 | 338.77 | -18.03 | 139.83 | 0.4587 | 675.3 | 999999 | |
| 7.30 | 49.82 | 4.10 | 27.94 | -18.87 | 338.50 | -18.31 | 140.89 | 0.4732 | -866.4 | -105.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -18.23 | 337.12 | -19.69 | 137.95 | 0.4798 | -556.0 | -487.4 | |
| 1.89 | 2.41 | 1.06 | 1.35 | -18.04 | 337.10 | -19.70 | 137.65 | 0.4778 | -675.7 | -582.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -18.69 | 336.23 | -20.58 | 137.39 | 0.4939 | 519.0 | 368.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
