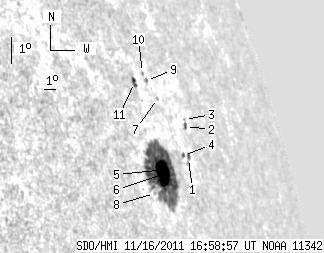

SDO HMI 2011-11-16 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.07 | 148.21 | 34.86 | 205.76 | 16.15 | 63.71 | 69.11 | 286.25 | 0.9362 | -369.9 | -189.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.61 | 0.00 | 5.64 | 16.31 | 66.15 | 71.55 | 286.30 | 0.9499 | -311.0 | -140.5 | |
| 0.00 | 1.97 | 0.00 | 3.19 | 17.28 | 66.75 | 72.14 | 287.29 | 0.9532 | -166.0 | -152.5 | |
| 0.00 | 1.03 | 0.00 | 1.68 | 17.49 | 66.85 | 72.25 | 287.50 | 0.9538 | -107.0 | -80.2 | |
| 1.37 | 1.37 | 2.11 | 2.11 | 16.42 | 65.76 | 71.15 | 286.43 | 0.9479 | -393.1 | 0.0 | |
| 3.78 | 132.24 | 5.31 | 181.86 | 16.07 | 63.89 | 69.29 | 286.16 | 0.9374 | 463.7 | -205.8 | |
| 17.00 | -5.00 | 23.40 | -5.00 | 15.94 | 63.44 | 68.84 | 286.04 | 0.9346 | -757.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.53 | 18.23 | 64.90 | 70.30 | 288.39 | 0.9438 | 70.0 | 42.8 | |
| 0.00 | 0.69 | 0.00 | 0.90 | 15.40 | 62.38 | 67.78 | 285.53 | 0.9280 | -388.0 | -354.1 | |
| 0.00 | 1.63 | 0.00 | 2.37 | 18.81 | 64.43 | 69.82 | 289.04 | 0.9414 | 401.0 | 212.1 | |
| 0.00 | 1.03 | 0.00 | 1.49 | 19.06 | 64.30 | 69.70 | 289.32 | 0.9408 | 243.0 | 183.0 | |
| 2.92 | 3.61 | 4.04 | 4.99 | 18.79 | 63.34 | 68.73 | 289.10 | 0.9352 | 215.9 | 74.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
