SDO HMI 2011-11-16 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.25 | 119.28 | 30.61 | 121.50 | 9.46 | 54.83 | 60.77 | 279.36 | 0.8732 | -129.5 | -108.7 | |
|
previous
or next observation for the same group /

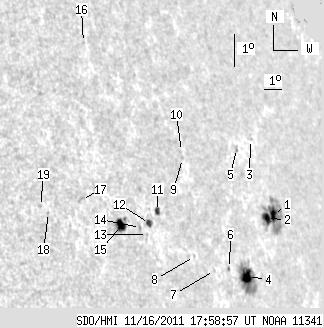

back to the solar disc SDO HMI 2011-11-16 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.21 | 49.12 | 4.64 | 54.14 | 9.93 | 57.45 | 63.40 | 279.76 | 0.8956 | -437.4 | -92.5 | |
| 5.41 | -1.00 | 5.87 | -1.00 | 9.83 | 56.95 | 62.89 | 279.67 | 0.8916 | -825.2 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.56 | 12.22 | 56.79 | 62.74 | 282.36 | 0.8913 | -296.0 | -320.5 | |
| 8.24 | 36.75 | 8.43 | 37.67 | 8.16 | 55.22 | 61.16 | 277.83 | 0.8773 | -688.6 | -266.7 | |
| 0.00 | 2.06 | 0.00 | 2.16 | 11.99 | 55.78 | 61.73 | 282.16 | 0.8832 | -536.0 | -462.1 | |
| 0.00 | 1.46 | 0.00 | 1.45 | 8.45 | 54.18 | 60.13 | 278.19 | 0.8686 | -474.0 | -403.8 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 8.42 | 53.28 | 59.22 | 278.20 | 0.8607 | -509.0 | -477.6 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 8.88 | 52.23 | 58.18 | 278.78 | 0.8515 | -322.0 | -309.0 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 11.82 | 52.41 | 58.36 | 282.22 | 0.8547 | -125.0 | -191.1 | |
| 0.00 | 0.60 | 0.00 | 0.57 | 12.03 | 52.43 | 58.37 | 282.46 | 0.8550 | -432.0 | -423.4 | |
| 2.92 | 3.69 | 2.62 | 3.32 | 10.30 | 50.53 | 56.48 | 280.56 | 0.8365 | 296.4 | 253.6 | |
| 3.26 | 4.04 | 2.89 | 3.57 | 9.96 | 50.00 | 55.95 | 280.19 | 0.8313 | 470.9 | 356.8 | |
| 0.00 | 1.12 | 0.00 | 0.98 | 9.64 | 49.81 | 55.76 | 279.82 | 0.8293 | 460.0 | 401.5 | |
| 0.00 | 1.80 | 0.00 | 1.58 | 9.86 | 49.49 | 55.44 | 280.11 | 0.8263 | 621.0 | 457.0 | |
| 7.21 | 10.13 | 6.16 | 8.65 | 9.96 | 48.51 | 54.46 | 280.30 | 0.8168 | 730.3 | 528.1 | |
| 0.00 | 0.77 | 0.00 | 0.67 | 15.51 | 48.28 | 54.23 | 287.10 | 0.8202 | 357.0 | 364.9 | |
| 0.00 | 2.66 | 0.00 | 2.18 | 10.80 | 46.68 | 52.63 | 281.52 | 0.7990 | 576.0 | 473.0 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 10.48 | 44.99 | 50.93 | 281.29 | 0.7808 | 557.0 | 457.4 | |
| 0.00 | 1.29 | 0.00 | 1.01 | 10.67 | 44.65 | 50.60 | 281.57 | 0.7774 | 518.0 | 380.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
