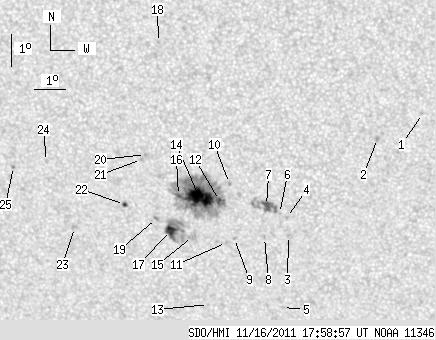

SDO HMI 2011-11-16 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.23 | 243.94 | 25.84 | 133.51 | -17.98 | 339.51 | -14.54 | 145.88 | 0.4273 | 768.7 | 397.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.07 | 346.68 | -7.37 | 157.88 | 0.3306 | 869.0 | 680.2 | |
| 0.00 | 2.32 | 0.00 | 1.23 | -15.86 | 345.25 | -8.80 | 155.15 | 0.3519 | 907.0 | 734.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.95 | 342.26 | -11.79 | 152.30 | 0.4175 | 825.0 | 637.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -18.38 | 342.24 | -11.81 | 151.56 | 0.4098 | 986.0 | 768.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.27 | 341.89 | -12.16 | 154.15 | 0.4523 | 92.0 | 125.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.25 | 342.02 | -12.03 | 150.98 | 0.4097 | 842.0 | 622.6 | |
| 5.41 | 19.66 | 2.93 | 10.67 | -18.00 | 341.63 | -12.42 | 149.87 | 0.4094 | 1048.8 | 827.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -19.02 | 341.49 | -12.56 | 150.88 | 0.4244 | 751.0 | 579.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.07 | 340.52 | -13.53 | 149.11 | 0.4326 | 734.0 | 555.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -17.32 | 340.50 | -13.56 | 146.74 | 0.4098 | 792.0 | 622.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -19.20 | 340.25 | -13.80 | 148.78 | 0.4365 | 828.0 | 620.1 | |
| 1.72 | 158.77 | 0.94 | 86.76 | -17.86 | 340.13 | -13.92 | 146.81 | 0.4200 | 1017.2 | 474.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -21.20 | 339.47 | -14.58 | 149.84 | 0.4690 | 623.0 | 472.3 | |
| 30.05 | -12.00 | 16.42 | -12.00 | -17.78 | 339.50 | -14.55 | 145.52 | 0.4245 | 1308.2 | 999999 | |
| 0.00 | 5.24 | 0.00 | 2.89 | -19.02 | 339.16 | -14.89 | 146.62 | 0.4433 | 127.0 | 205.0 | |
| 1.46 | -12.00 | 0.80 | -12.00 | -17.72 | 338.83 | -15.22 | 144.25 | 0.4299 | 624.1 | 999999 | |
| 6.96 | 33.06 | 3.85 | 18.27 | -18.84 | 338.47 | -15.59 | 145.17 | 0.4472 | -853.1 | -209.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -12.96 | 338.55 | -15.50 | 135.85 | 0.3755 | 682.0 | 519.2 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -18.46 | 338.05 | -16.00 | 143.95 | 0.4463 | 748.0 | 369.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -16.44 | 337.88 | -16.18 | 140.68 | 0.4235 | 928.0 | 706.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -16.60 | 337.73 | -16.32 | 140.68 | 0.4268 | 875.0 | 735.5 | |
| 1.63 | 2.58 | 0.90 | 1.43 | -18.03 | 337.05 | -17.00 | 141.70 | 0.4506 | -664.6 | -511.2 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -18.79 | 335.32 | -18.73 | 140.14 | 0.4762 | 738.0 | 559.8 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -16.71 | 334.63 | -19.42 | 136.01 | 0.4604 | 721.0 | 376.3 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -16.89 | 333.53 | -20.53 | 134.74 | 0.4743 | -725.0 | -687.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
