SDO HMI 2011-11-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.64 | 111.72 | 32.47 | 115.94 | 9.37 | 54.86 | 61.36 | 279.23 | 0.8781 | -193.0 | -93.9 | |
|
previous
or next observation for the same group /

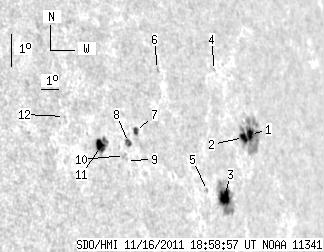

back to the solar disc SDO HMI 2011-11-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.47 | 45.77 | 5.02 | 51.46 | 9.94 | 57.45 | 63.95 | 279.75 | 0.8998 | -462.8 | -93.9 | |
| 4.38 | -1.00 | 4.84 | -1.00 | 9.87 | 56.95 | 63.45 | 279.69 | 0.8959 | -820.8 | 999999 | |
| 10.30 | 36.84 | 10.72 | 38.43 | 8.17 | 55.17 | 61.67 | 277.83 | 0.8815 | -705.7 | -234.8 | |
| 0.00 | 0.77 | 0.00 | 0.83 | 11.94 | 55.79 | 62.29 | 282.06 | 0.8877 | -541.0 | -464.6 | |
| 0.00 | 1.46 | 0.00 | 1.47 | 8.39 | 54.17 | 60.67 | 278.11 | 0.8732 | -601.0 | -459.4 | |
| 0.00 | 1.55 | 0.00 | 1.49 | 12.11 | 52.31 | 58.81 | 282.51 | 0.8589 | -330.0 | -318.9 | |
| 3.01 | 3.78 | 2.74 | 3.44 | 10.31 | 50.48 | 56.98 | 280.54 | 0.8412 | 306.3 | 128.9 | |
| 2.58 | 3.26 | 2.32 | 2.93 | 10.00 | 50.01 | 56.51 | 280.20 | 0.8366 | 427.2 | 642.0 | |
| 0.00 | 0.60 | 0.00 | 0.54 | 9.47 | 49.76 | 56.26 | 279.58 | 0.8340 | 403.0 | 420.1 | |
| 0.00 | 1.97 | 0.00 | 1.76 | 9.62 | 49.69 | 56.19 | 279.77 | 0.8334 | 472.0 | 420.9 | |
| 7.90 | 15.03 | 6.83 | 13.02 | 9.93 | 48.48 | 54.98 | 280.24 | 0.8219 | 683.0 | 385.4 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 10.90 | 46.86 | 53.36 | 281.56 | 0.8065 | 536.0 | 472.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
