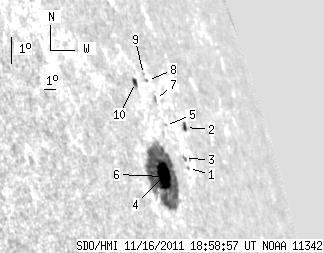

SDO HMI 2011-11-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.10 | 143.74 | 33.82 | 209.10 | 16.17 | 63.66 | 70.16 | 286.22 | 0.9423 | -340.2 | -211.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.69 | 16.08 | 65.95 | 72.45 | 286.02 | 0.9545 | -127.0 | -147.5 | |
| 1.12 | 2.92 | 1.93 | 5.02 | 17.31 | 66.84 | 73.34 | 287.27 | 0.9591 | 222.8 | -175.1 | |
| 0.00 | 1.63 | 0.00 | 2.66 | 16.40 | 65.82 | 72.32 | 286.36 | 0.9539 | -478.0 | -373.3 | |
| 3.52 | 129.57 | 5.19 | 186.83 | 16.08 | 63.88 | 70.38 | 286.11 | 0.9436 | 384.9 | -224.7 | |
| 0.00 | 1.12 | 0.00 | 1.74 | 17.46 | 64.90 | 71.40 | 287.52 | 0.9495 | -283.0 | -312.1 | |
| 15.80 | -4.00 | 22.83 | -4.00 | 15.95 | 63.40 | 69.91 | 286.00 | 0.9409 | -715.7 | 999999 | |
| 0.00 | 2.15 | 0.00 | 3.32 | 18.28 | 64.71 | 71.21 | 288.39 | 0.9487 | 69.0 | 42.0 | |
| 0.00 | 0.60 | 0.00 | 0.92 | 18.88 | 64.52 | 71.02 | 289.03 | 0.9480 | 259.0 | 237.6 | |
| 0.00 | 0.94 | 0.00 | 1.44 | 19.07 | 64.33 | 70.83 | 289.25 | 0.9470 | 122.0 | 200.2 | |
| 2.66 | 3.78 | 3.87 | 5.48 | 18.86 | 63.37 | 69.87 | 289.10 | 0.9417 | 207.1 | 174.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
