SDO HMI 2011-11-16 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.26 | 135.67 | 34.95 | 202.26 | 16.18 | 63.62 | 70.67 | 286.21 | 0.9451 | -370.3 | -200.8 | |
|
previous
or next observation for the same group /

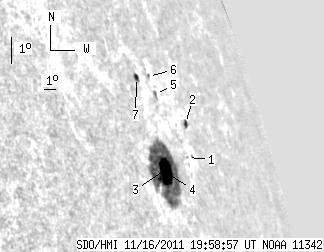

back to the solar disc SDO HMI 2011-11-16 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 1.59 | 16.31 | 65.93 | 72.98 | 286.24 | 0.9572 | -475.0 | -407.9 | |
| 1.20 | 3.09 | 2.12 | 5.47 | 17.32 | 66.75 | 73.81 | 287.26 | 0.9613 | -202.6 | 17.9 | |
| 3.26 | 123.74 | 4.94 | 183.08 | 16.09 | 63.81 | 70.86 | 286.10 | 0.9462 | 357.5 | -216.6 | |
| 16.14 | -3.00 | 23.92 | -3.00 | 15.95 | 63.41 | 70.47 | 285.98 | 0.9440 | -672.3 | 999999 | |
| 0.00 | 2.83 | 0.00 | 4.48 | 18.32 | 64.60 | 71.65 | 288.41 | 0.9510 | 102.0 | -57.1 | |
| 0.00 | 1.12 | 0.00 | 1.76 | 18.89 | 64.48 | 71.53 | 289.01 | 0.9506 | 255.0 | 203.6 | |
| 2.66 | 3.95 | 3.97 | 5.88 | 18.91 | 63.33 | 70.38 | 289.11 | 0.9445 | 203.5 | 154.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
