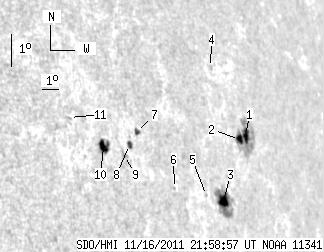

SDO HMI 2011-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.20 | 104.43 | 30.59 | 115.01 | 9.38 | 55.01 | 63.17 | 279.17 | 0.8926 | -180.3 | -114.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.64 | 44.40 | 5.53 | 52.93 | 9.99 | 57.38 | 65.54 | 279.75 | 0.9114 | -370.4 | -92.1 | |
| 4.04 | -1.00 | 4.73 | -1.00 | 9.89 | 56.91 | 65.07 | 279.66 | 0.9080 | -729.7 | 999999 | |
| 7.90 | 34.18 | 8.69 | 37.72 | 8.13 | 55.21 | 63.37 | 277.75 | 0.8950 | -692.5 | -257.9 | |
| 0.00 | 1.72 | 0.00 | 1.94 | 12.11 | 55.77 | 63.92 | 282.16 | 0.9003 | -509.0 | -400.0 | |
| 0.00 | 1.29 | 0.00 | 1.37 | 8.32 | 54.14 | 62.30 | 277.99 | 0.8866 | -444.0 | -339.1 | |
| 0.00 | 0.86 | 0.00 | 0.86 | 8.61 | 52.20 | 60.36 | 278.38 | 0.8706 | -372.0 | -405.9 | |
| 2.66 | 3.69 | 2.54 | 3.52 | 10.39 | 50.44 | 58.60 | 280.53 | 0.8560 | 255.3 | 107.3 | |
| 3.18 | 3.52 | 2.98 | 3.30 | 10.02 | 49.93 | 58.09 | 280.13 | 0.8512 | 356.5 | 222.0 | |
| 0.00 | 3.09 | 0.00 | 2.87 | 9.70 | 49.55 | 57.71 | 279.78 | 0.8477 | 596.0 | 491.5 | |
| 6.78 | 10.48 | 6.12 | 9.46 | 10.01 | 48.46 | 56.62 | 280.22 | 0.8378 | 583.9 | 372.5 | |
| 0.00 | 1.20 | 0.00 | 1.04 | 10.95 | 46.88 | 55.04 | 281.47 | 0.8233 | 544.0 | 508.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
