SDO HMI 2011-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.60 | 249.96 | 26.37 | 138.07 | -18.94 | 337.69 | -14.15 | 148.74 | 0.4361 | 233.2 | 231.1 | |
|
previous
or next observation for the same group /

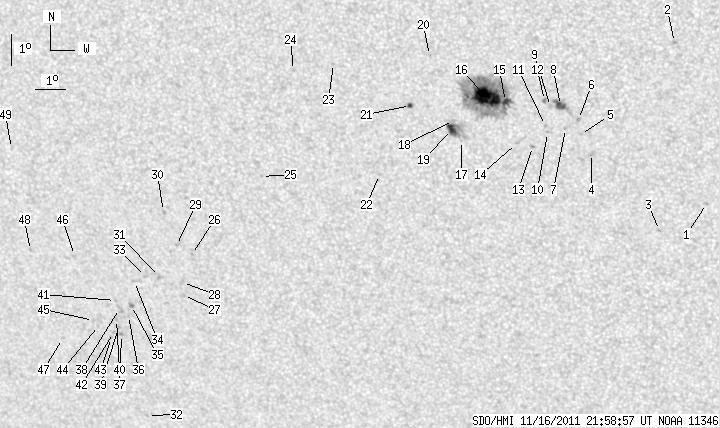

back to the solar disc SDO HMI 2011-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.84 | -21.11 | 346.35 | -5.49 | 167.51 | 0.4149 | 749.0 | 589.6 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -15.99 | 345.52 | -6.32 | 161.69 | 0.3385 | 912.0 | 684.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -21.99 | 344.80 | -7.04 | 164.77 | 0.4343 | 712.0 | 602.0 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -19.52 | 342.76 | -9.08 | 158.48 | 0.4075 | 603.0 | 541.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.91 | 342.44 | -9.40 | 157.20 | 0.4005 | 828.0 | 679.7 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -18.44 | 342.41 | -9.44 | 156.63 | 0.3937 | 1045.0 | 824.3 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -18.73 | 341.98 | -9.86 | 156.01 | 0.4007 | 876.0 | 684.7 | |
| 6.18 | 10.13 | 3.32 | 5.45 | -18.00 | 341.86 | -9.98 | 154.95 | 0.3909 | 1046.1 | 813.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -18.03 | 341.54 | -10.30 | 154.29 | 0.3936 | 708.0 | 602.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.86 | 341.40 | -10.45 | 154.92 | 0.4065 | 743.0 | 589.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -18.64 | 341.35 | -10.49 | 154.57 | 0.4036 | 821.0 | 656.8 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -17.84 | 341.36 | -10.48 | 153.68 | 0.3922 | 1001.0 | 801.6 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -19.31 | 340.89 | -10.95 | 154.37 | 0.4164 | 784.0 | 618.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -19.22 | 340.38 | -11.46 | 153.26 | 0.4187 | 757.0 | 616.4 | |
| 3.69 | 159.14 | 2.00 | 86.13 | -17.89 | 340.12 | -11.72 | 151.13 | 0.4020 | 974.2 | 463.5 | |
| 29.03 | -15.00 | 15.71 | -15.00 | -17.74 | 339.53 | -12.31 | 149.73 | 0.4046 | 1332.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.14 | 338.62 | -13.22 | 149.77 | 0.4309 | -301.0 | -276.2 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -18.51 | 338.41 | -13.43 | 148.58 | 0.4241 | -182.0 | -156.8 | |
| 7.47 | 18.72 | 4.09 | 10.25 | -18.80 | 338.33 | -13.51 | 148.78 | 0.4287 | -800.7 | -355.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -16.46 | 337.81 | -14.04 | 144.56 | 0.4028 | 833.0 | 641.3 | |
| 1.89 | 2.40 | 1.04 | 1.32 | -18.05 | 337.07 | -14.77 | 145.49 | 0.4298 | -685.6 | -481.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -20.27 | 335.85 | -15.99 | 146.35 | 0.4685 | 855.0 | 684.8 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -16.76 | 334.70 | -17.14 | 139.54 | 0.4368 | 447.0 | 428.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.00 | 333.37 | -18.47 | 137.84 | 0.4532 | -811.0 | -636.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -20.39 | 331.91 | -19.93 | 140.63 | 0.5058 | -745.0 | -554.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -22.98 | 329.10 | -22.74 | 140.38 | 0.5602 | -668.0 | -560.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -24.35 | 328.57 | -23.27 | 141.41 | 0.5793 | -678.0 | -615.5 | |
| 0.00 | 2.49 | 0.00 | 1.50 | -23.91 | 328.62 | -23.23 | 140.95 | 0.5744 | -724.0 | -674.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -22.69 | 328.63 | -23.21 | 139.47 | 0.5616 | -801.0 | -666.6 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -21.59 | 328.37 | -23.47 | 137.74 | 0.5529 | -857.0 | -656.0 | |
| 0.00 | 1.89 | 0.00 | 1.15 | -23.73 | 327.84 | -24.00 | 139.84 | 0.5796 | -783.0 | -648.4 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -28.46 | 326.33 | -25.52 | 143.58 | 0.6402 | -621.0 | -495.6 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -23.74 | 327.34 | -24.50 | 139.29 | 0.5843 | -579.0 | -422.3 | |
| 0.00 | 1.46 | 0.00 | 0.89 | -23.92 | 326.91 | -24.93 | 139.04 | 0.5900 | -799.0 | -585.4 | |
| 0.34 | 2.40 | 0.21 | 1.49 | -24.72 | 326.63 | -25.21 | 139.70 | 0.6005 | -858.8 | -749.8 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -25.06 | 326.45 | -25.39 | 139.91 | 0.6055 | -619.0 | -572.2 | |
| 0.00 | 1.46 | 0.00 | 0.92 | -25.70 | 326.04 | -25.80 | 140.24 | 0.6154 | -773.0 | -637.8 | |
| 0.00 | 3.26 | 0.00 | 2.03 | -24.83 | 326.17 | -25.67 | 139.35 | 0.6058 | -715.0 | -684.3 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -25.47 | 325.99 | -25.85 | 139.91 | 0.6136 | -750.0 | -696.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -25.20 | 325.98 | -25.86 | 139.59 | 0.6111 | -757.0 | -663.0 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -24.57 | 326.09 | -25.76 | 138.94 | 0.6040 | -732.0 | -682.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -25.64 | 325.77 | -26.08 | 139.88 | 0.6173 | -618.0 | -515.8 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -25.81 | 325.65 | -26.19 | 139.96 | 0.6199 | -548.0 | -435.5 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -25.42 | 325.27 | -26.57 | 139.12 | 0.6196 | -674.0 | -579.8 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -25.25 | 325.12 | -26.72 | 138.78 | 0.6193 | -590.0 | -510.2 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -23.10 | 324.92 | -26.92 | 135.95 | 0.6012 | -392.0 | -382.2 | |
| 0.00 | 1.80 | 0.00 | 1.16 | -25.89 | 323.82 | -28.02 | 138.24 | 0.6370 | -639.0 | -521.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.97 | 323.35 | -28.49 | 134.25 | 0.6154 | -621.0 | -474.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -19.67 | 323.36 | -28.48 | 129.87 | 0.5873 | -615.0 | -478.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
