SDO HMI 2011-11-16 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.07 | 94.13 | 31.93 | 104.96 | 9.40 | 54.82 | 63.53 | 279.20 | 0.8952 | -111.5 | -122.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

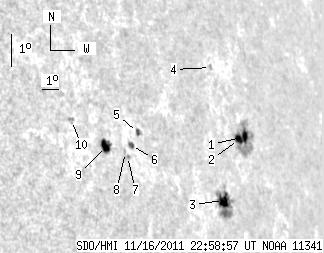

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.38 | 38.48 | 5.33 | 46.74 | 9.96 | 57.35 | 66.06 | 279.72 | 0.9150 | -402.5 | -134.0 | |
| 4.21 | -1.00 | 5.03 | -1.00 | 9.89 | 56.88 | 65.59 | 279.65 | 0.9117 | -678.1 | 999999 | |
| 8.16 | 31.61 | 9.16 | 35.58 | 8.13 | 55.21 | 63.92 | 277.75 | 0.8992 | -625.6 | -255.5 | |
| 0.00 | 1.63 | 0.00 | 1.88 | 12.11 | 55.79 | 64.50 | 282.14 | 0.9045 | -531.0 | -440.5 | |
| 2.15 | 2.75 | 2.08 | 2.66 | 10.37 | 50.42 | 59.13 | 280.48 | 0.8607 | 237.0 | 222.1 | |
| 2.75 | 3.44 | 2.62 | 3.27 | 10.00 | 49.95 | 58.66 | 280.07 | 0.8564 | 366.2 | 328.4 | |
| 0.00 | 1.37 | 0.00 | 1.30 | 9.68 | 49.63 | 58.34 | 279.72 | 0.8534 | 543.0 | 506.4 | |
| 0.00 | 1.20 | 0.00 | 1.13 | 9.80 | 49.55 | 58.26 | 279.87 | 0.8527 | 587.0 | 483.4 | |
| 8.42 | 10.56 | 7.71 | 9.68 | 10.02 | 48.48 | 57.19 | 280.20 | 0.8430 | 591.2 | 334.2 | |
| 0.00 | 3.09 | 0.00 | 2.72 | 10.87 | 46.85 | 55.56 | 281.33 | 0.8282 | 672.0 | 466.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
