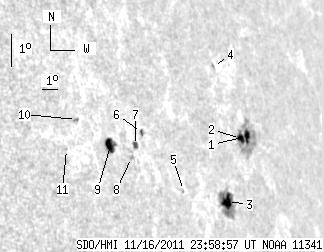

SDO HMI 2011-11-16 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.69 | 101.54 | 34.43 | 115.97 | 9.42 | 54.99 | 64.25 | 279.19 | 0.9007 | -136.4 | -119.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.90 | 44.07 | 6.09 | 54.68 | 9.97 | 57.34 | 66.60 | 279.71 | 0.9188 | -380.1 | -106.2 | |
| 4.29 | -1.00 | 5.24 | -1.00 | 9.93 | 56.87 | 66.13 | 279.68 | 0.9155 | -676.9 | 999999 | |
| 9.19 | 32.47 | 10.54 | 37.25 | 8.11 | 55.28 | 64.55 | 277.71 | 0.9039 | -602.7 | -260.7 | |
| 0.00 | 1.98 | 0.00 | 2.32 | 12.15 | 55.83 | 65.09 | 282.15 | 0.9088 | -475.0 | -397.6 | |
| 0.00 | 1.03 | 0.00 | 1.08 | 8.55 | 52.47 | 61.73 | 278.27 | 0.8820 | -434.0 | -374.2 | |
| 1.46 | 2.58 | 1.43 | 2.53 | 10.38 | 50.41 | 59.67 | 280.46 | 0.8654 | 283.2 | 199.5 | |
| 2.92 | 3.52 | 2.83 | 3.41 | 10.00 | 49.94 | 59.20 | 280.05 | 0.8611 | 353.7 | 345.3 | |
| 0.00 | 1.72 | 0.00 | 1.65 | 9.66 | 49.60 | 58.86 | 279.67 | 0.8580 | 549.0 | 478.2 | |
| 8.93 | 11.51 | 8.30 | 10.70 | 10.06 | 48.50 | 57.76 | 280.21 | 0.8484 | 556.4 | 307.5 | |
| 0.00 | 1.72 | 0.00 | 1.53 | 10.90 | 46.85 | 56.11 | 281.33 | 0.8335 | 629.0 | 508.2 | |
| 0.00 | 0.94 | 0.00 | 0.82 | 10.03 | 46.07 | 55.34 | 280.34 | 0.8255 | 541.0 | 479.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
