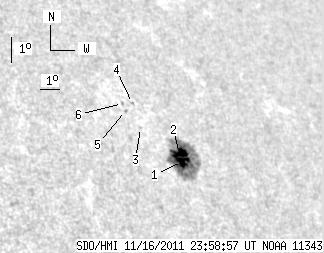

SDO HMI 2011-11-16 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.98 | 92.34 | 13.60 | 78.62 | 28.44 | 41.07 | 50.33 | 303.59 | 0.8147 | -747.5 | -267.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-16 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.39 | 88.30 | 6.28 | 75.25 | 28.23 | 41.13 | 50.39 | 303.32 | 0.8146 | -892.9 | -259.0 | |
| 8.59 | -1.00 | 7.32 | -1.00 | 28.49 | 41.14 | 50.41 | 303.62 | 0.8155 | -746.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 29.41 | 39.69 | 48.96 | 305.22 | 0.8065 | -529.0 | -435.9 | |
| 0.00 | 1.12 | 0.00 | 0.94 | 30.22 | 39.81 | 49.07 | 306.11 | 0.8104 | -381.0 | -312.4 | |
| 0.00 | 1.20 | 0.00 | 1.00 | 30.00 | 39.30 | 48.56 | 306.05 | 0.8053 | -571.0 | -486.1 | |
| 0.00 | 1.03 | 0.00 | 0.86 | 30.23 | 39.30 | 48.56 | 306.33 | 0.8062 | -603.0 | -489.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
