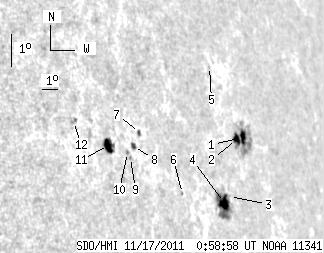

SDO HMI 2011-11-17 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.22 | 90.89 | 32.19 | 105.18 | 9.45 | 54.76 | 64.57 | 279.23 | 0.9030 | -80.3 | -100.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 00:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.04 | 38.49 | 5.13 | 48.98 | 9.97 | 57.34 | 67.15 | 279.70 | 0.9225 | -331.9 | -18.0 | |
| 5.33 | -1.00 | 6.64 | -1.00 | 9.93 | 56.86 | 66.67 | 279.67 | 0.9192 | -663.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.12 | 8.27 | 55.72 | 65.54 | 277.87 | 0.9111 | 304.0 | 262.0 | |
| 6.61 | 26.20 | 7.75 | 30.59 | 8.11 | 55.31 | 65.12 | 277.70 | 0.9081 | -548.7 | -410.4 | |
| 0.00 | 1.12 | 0.00 | 1.34 | 12.18 | 55.82 | 65.63 | 282.17 | 0.9126 | -499.0 | -413.3 | |
| 0.00 | 1.20 | 0.00 | 1.28 | 8.49 | 52.55 | 62.36 | 278.19 | 0.8871 | -404.0 | -363.0 | |
| 1.72 | 2.41 | 1.71 | 2.40 | 10.41 | 50.42 | 60.23 | 280.46 | 0.8702 | 239.9 | 264.4 | |
| 2.41 | 3.26 | 2.37 | 3.21 | 10.01 | 49.93 | 59.74 | 280.03 | 0.8659 | 415.5 | 266.1 | |
| 0.00 | 1.12 | 0.00 | 1.09 | 9.69 | 49.65 | 59.47 | 279.67 | 0.8634 | 558.0 | 498.8 | |
| 0.00 | 1.46 | 0.00 | 1.42 | 9.84 | 49.52 | 59.33 | 279.86 | 0.8623 | 496.0 | 451.9 | |
| 9.11 | 11.94 | 8.59 | 11.27 | 10.09 | 48.48 | 58.29 | 280.21 | 0.8532 | 557.8 | 272.7 | |
| 0.00 | 2.75 | 0.00 | 2.48 | 10.88 | 46.74 | 56.55 | 281.27 | 0.8376 | 653.0 | 447.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
