SDO HMI 2011-11-17 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.96 | 97.16 | 32.52 | 114.78 | 9.36 | 54.78 | 65.14 | 279.11 | 0.9072 | -107.9 | -78.5 | |
|
previous
or next observation for the same group /

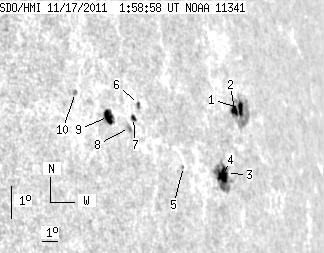

back to the solar disc SDO HMI 2011-11-17 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.95 | 39.26 | 5.13 | 51.04 | 10.01 | 57.37 | 67.73 | 279.73 | 0.9263 | -339.7 | -47.5 | |
| 4.12 | -1.00 | 5.26 | -1.00 | 9.97 | 56.87 | 67.24 | 279.70 | 0.9230 | -672.2 | 999999 | |
| 0.52 | 32.90 | 0.62 | 39.37 | 8.13 | 55.58 | 65.94 | 277.72 | 0.9140 | 131.3 | -275.3 | |
| 7.56 | -3.00 | 9.04 | -3.00 | 8.08 | 55.27 | 65.63 | 277.67 | 0.9118 | -577.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.21 | 8.46 | 52.66 | 63.02 | 278.14 | 0.8923 | -376.0 | -299.5 | |
| 1.72 | 2.75 | 1.74 | 2.79 | 10.42 | 50.37 | 60.74 | 280.45 | 0.8745 | 255.6 | 203.5 | |
| 2.41 | 3.09 | 2.41 | 3.09 | 10.04 | 49.94 | 60.31 | 280.04 | 0.8707 | 303.4 | 212.0 | |
| 0.00 | 2.49 | 0.00 | 2.47 | 9.75 | 49.61 | 59.97 | 279.73 | 0.8678 | 596.0 | 480.7 | |
| 8.68 | 13.32 | 8.32 | 12.76 | 10.13 | 48.47 | 58.83 | 280.23 | 0.8580 | 547.0 | 329.9 | |
| 0.00 | 2.23 | 0.00 | 2.05 | 10.92 | 46.81 | 57.18 | 281.27 | 0.8435 | 638.0 | 489.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
