SDO HMI 2011-11-17 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.89 | 224.19 | 26.25 | 121.88 | -18.71 | 338.13 | -10.96 | 154.52 | 0.4082 | 363.5 | 293.1 | |
|
previous
or next observation for the same group /

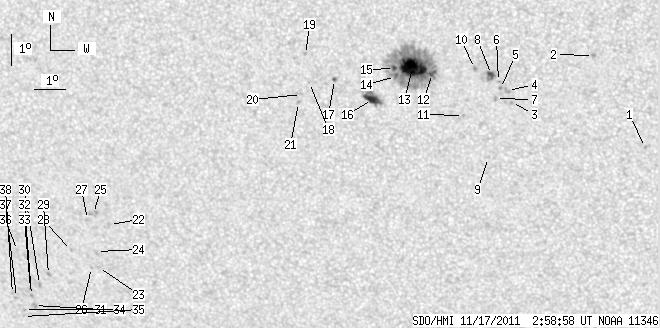

back to the solar disc SDO HMI 2011-11-17 02:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.23 | 346.82 | -2.26 | 174.55 | 0.3923 | 899.0 | 706.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -17.30 | 345.25 | -3.84 | 169.38 | 0.3487 | 899.0 | 764.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -18.81 | 342.64 | -6.45 | 163.77 | 0.3824 | 865.0 | 742.3 | |
| 0.00 | 2.92 | 0.00 | 1.56 | -18.42 | 342.52 | -6.56 | 163.21 | 0.3770 | 706.0 | 831.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -18.36 | 342.31 | -6.78 | 162.63 | 0.3771 | 1011.0 | 809.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.14 | 342.25 | -6.84 | 162.31 | 0.3739 | 752.0 | 636.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.68 | 342.14 | -6.95 | 162.49 | 0.3828 | 816.0 | 666.3 | |
| 3.26 | 8.25 | 1.74 | 4.40 | -17.92 | 342.04 | -7.05 | 161.61 | 0.3716 | 1103.5 | 825.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -20.57 | 341.83 | -7.26 | 163.29 | 0.4132 | 791.0 | 539.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -17.73 | 341.52 | -7.57 | 160.16 | 0.3715 | 1036.0 | 854.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.23 | 341.10 | -7.99 | 160.59 | 0.3965 | 760.0 | 623.4 | |
| 3.01 | 155.17 | 1.61 | 83.15 | -17.90 | 340.19 | -8.90 | 157.22 | 0.3819 | 919.3 | 467.9 | |
| 29.47 | -12.00 | 15.79 | -12.00 | -17.72 | 339.57 | -9.52 | 155.60 | 0.3832 | 1355.0 | 999999 | |
| 1.46 | -12.00 | 0.79 | -12.00 | -18.01 | 339.01 | -10.08 | 154.71 | 0.3912 | 232.8 | 999999 | |
| 1.98 | -12.00 | 1.06 | -12.00 | -17.75 | 339.00 | -10.09 | 154.38 | 0.3876 | 790.3 | 999999 | |
| 9.02 | 16.50 | 4.89 | 8.94 | -18.74 | 338.24 | -10.85 | 153.91 | 0.4071 | -829.9 | -443.4 | |
| 0.69 | 1.29 | 0.37 | 0.70 | -18.12 | 337.07 | -12.02 | 150.77 | 0.4071 | -821.1 | -618.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.22 | 336.26 | -12.83 | 149.31 | 0.4149 | 742.0 | 631.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -17.34 | 336.20 | -12.89 | 148.00 | 0.4036 | 870.0 | 714.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -18.61 | 335.97 | -13.11 | 149.25 | 0.4224 | 723.0 | 488.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.86 | 335.86 | -13.23 | 149.36 | 0.4268 | 832.0 | 631.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.90 | 329.13 | -19.96 | 143.75 | 0.5339 | -605.0 | -492.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -24.33 | 328.52 | -20.57 | 144.64 | 0.5554 | -730.0 | -531.8 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -23.80 | 328.54 | -20.55 | 144.05 | 0.5492 | -466.0 | -491.1 | |
| 0.00 | 3.78 | 0.00 | 2.21 | -22.55 | 328.64 | -20.45 | 142.67 | 0.5343 | -556.0 | -668.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -24.34 | 328.27 | -20.82 | 144.33 | 0.5575 | -589.0 | -546.0 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -22.75 | 328.40 | -20.69 | 142.61 | 0.5387 | -469.0 | -436.4 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -23.79 | 327.67 | -21.42 | 142.93 | 0.5565 | -827.0 | -708.6 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -24.60 | 326.72 | -22.37 | 142.73 | 0.5737 | -907.0 | -771.8 | |
| 0.00 | 2.15 | 0.00 | 1.30 | -24.94 | 326.33 | -22.76 | 142.67 | 0.5806 | -763.0 | -639.4 | |
| 0.00 | 2.49 | 0.00 | 1.53 | -25.65 | 326.01 | -23.08 | 143.12 | 0.5909 | -783.0 | -637.5 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -25.32 | 325.97 | -23.11 | 142.69 | 0.5877 | -849.0 | -663.5 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -25.08 | 325.99 | -23.10 | 142.43 | 0.5851 | -657.0 | -628.5 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -25.79 | 325.62 | -23.46 | 142.84 | 0.5957 | -568.0 | -479.1 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -26.03 | 325.54 | -23.55 | 143.01 | 0.5989 | -478.0 | -371.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -23.82 | 325.77 | -23.32 | 140.70 | 0.5739 | -636.0 | -459.8 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -25.39 | 325.42 | -23.67 | 142.15 | 0.5933 | -609.0 | -532.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -25.26 | 325.31 | -23.78 | 141.87 | 0.5929 | -668.0 | -569.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
