SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.29 | 84.12 | 28.49 | 109.71 | 9.26 | 55.07 | 67.62 | 278.95 | 0.9245 | -191.0 | -62.1 | |
|
previous
or next observation for the same group /

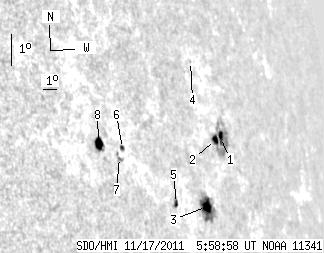

back to the solar disc SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.35 | 33.94 | 4.79 | 48.59 | 10.03 | 57.31 | 69.86 | 279.72 | 0.9395 | -311.8 | -9.6 | |
| 3.44 | -1.00 | 4.81 | -1.00 | 9.99 | 56.85 | 69.40 | 279.69 | 0.9368 | -645.9 | 999999 | |
| 5.59 | 30.50 | 7.30 | 39.98 | 8.04 | 55.30 | 67.85 | 277.61 | 0.9269 | -619.2 | -203.1 | |
| 0.00 | 0.77 | 0.00 | 1.04 | 12.38 | 55.96 | 68.52 | 282.28 | 0.9317 | -294.0 | -279.3 | |
| 2.06 | 2.92 | 2.46 | 3.49 | 8.22 | 53.06 | 65.61 | 277.84 | 0.9117 | -435.9 | -393.9 | |
| 1.80 | 2.32 | 1.93 | 2.48 | 10.00 | 49.91 | 62.46 | 279.91 | 0.8884 | 256.3 | 327.5 | |
| 0.00 | 4.30 | 0.00 | 4.55 | 9.74 | 49.62 | 62.18 | 279.63 | 0.8860 | 521.0 | 407.4 | |
| 7.05 | 9.37 | 7.20 | 9.58 | 10.21 | 48.44 | 60.99 | 280.22 | 0.8765 | 506.6 | 265.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
