SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.90 | 233.66 | 21.87 | 126.98 | -19.02 | 337.61 | -9.84 | 157.61 | 0.4059 | 232.8 | 241.0 | |
|
previous
or next observation for the same group /

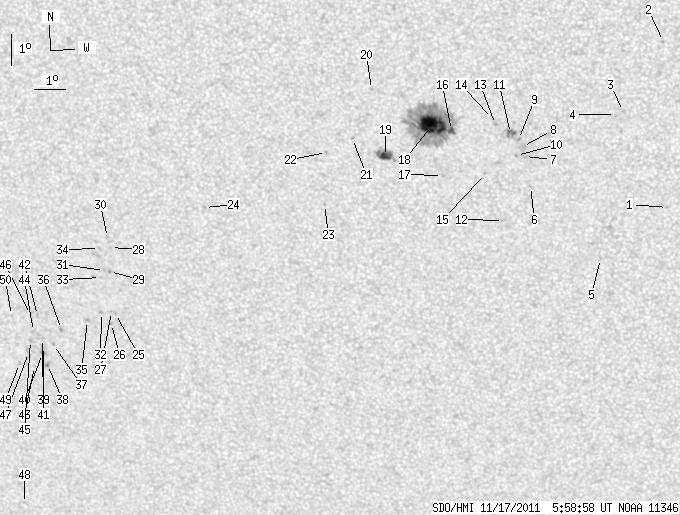

back to the solar disc SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.32 | 346.95 | -0.50 | 178.81 | 0.3916 | 734.0 | 615.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.06 | 346.84 | -0.60 | 178.08 | 0.3055 | 848.0 | 669.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.26 | 345.60 | -1.85 | 174.81 | 0.3431 | 717.0 | 579.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.35 | 345.35 | -2.10 | 174.15 | 0.3450 | 777.0 | 692.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -21.97 | 344.80 | -2.64 | 174.13 | 0.4202 | 725.0 | 538.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.65 | 342.64 | -4.81 | 168.23 | 0.3888 | 748.0 | 608.3 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -18.69 | 342.48 | -4.97 | 167.27 | 0.3742 | 687.0 | 672.7 | |
| 0.00 | 2.49 | 0.00 | 1.33 | -18.38 | 342.42 | -5.02 | 166.94 | 0.3694 | 879.0 | 707.7 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -18.15 | 342.30 | -5.14 | 166.49 | 0.3663 | 981.0 | 713.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.66 | 342.23 | -5.22 | 166.64 | 0.3747 | 887.0 | 744.6 | |
| 0.00 | 6.96 | 0.00 | 3.70 | -17.96 | 342.06 | -5.39 | 165.74 | 0.3643 | 1168.0 | 993.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -20.75 | 341.74 | -5.70 | 166.81 | 0.4091 | 727.0 | 632.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -17.68 | 341.60 | -5.85 | 164.37 | 0.3618 | 1054.0 | 916.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.49 | 341.51 | -5.94 | 163.99 | 0.3592 | 856.0 | 655.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.24 | 341.23 | -6.22 | 164.64 | 0.3877 | 756.0 | 564.8 | |
| 3.09 | 150.71 | 1.65 | 80.38 | -17.88 | 340.21 | -7.23 | 161.10 | 0.3716 | 884.0 | 470.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -19.31 | 339.87 | -7.58 | 161.56 | 0.3952 | 758.0 | 509.9 | |
| 30.59 | -16.00 | 16.31 | -16.00 | -17.69 | 339.62 | -7.82 | 159.50 | 0.3720 | 1367.7 | 999999 | |
| 6.96 | 15.21 | 3.75 | 8.20 | -18.72 | 338.09 | -9.36 | 157.04 | 0.3965 | -736.9 | -366.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -16.60 | 337.76 | -9.69 | 153.88 | 0.3678 | 841.0 | 634.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.16 | 337.08 | -10.37 | 154.22 | 0.3950 | -900.0 | -670.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -18.61 | 336.22 | -11.23 | 152.95 | 0.4075 | 802.0 | 598.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -20.27 | 336.04 | -11.41 | 154.46 | 0.4322 | 746.0 | 466.8 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -20.42 | 332.12 | -15.32 | 147.58 | 0.4639 | -807.0 | -659.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -23.93 | 328.70 | -18.75 | 146.56 | 0.5352 | -740.0 | -638.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -24.26 | 328.51 | -18.94 | 146.68 | 0.5407 | -751.0 | -637.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -23.86 | 328.57 | -18.87 | 146.31 | 0.5355 | -753.0 | -600.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -21.76 | 328.84 | -18.61 | 144.19 | 0.5085 | -821.0 | -656.7 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -22.54 | 328.70 | -18.75 | 144.94 | 0.5189 | -909.0 | -724.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -21.43 | 328.78 | -18.66 | 143.70 | 0.5052 | -871.0 | -671.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -22.51 | 328.53 | -18.91 | 144.68 | 0.5200 | -748.0 | -611.4 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -23.90 | 328.22 | -19.22 | 145.88 | 0.5388 | -792.0 | -635.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -22.74 | 328.36 | -19.08 | 144.72 | 0.5242 | -652.0 | -514.1 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -21.80 | 328.47 | -18.98 | 143.70 | 0.5123 | -794.0 | -581.2 | |
| 0.00 | 2.49 | 0.00 | 1.47 | -24.17 | 327.70 | -19.75 | 145.50 | 0.5464 | -847.0 | -670.1 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -24.49 | 326.74 | -20.70 | 144.63 | 0.5579 | -887.0 | -701.5 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -25.00 | 326.37 | -21.07 | 144.74 | 0.5667 | -784.0 | -684.4 | |
| 0.00 | 2.06 | 0.00 | 1.25 | -25.67 | 326.04 | -21.41 | 145.08 | 0.5770 | -677.0 | -593.2 | |
| 0.00 | 2.23 | 0.00 | 1.34 | -25.07 | 326.01 | -21.44 | 144.37 | 0.5706 | -471.0 | -392.7 | |
| 0.26 | 1.46 | 0.16 | 0.88 | -25.31 | 325.93 | -21.52 | 144.54 | 0.5738 | -788.0 | -745.9 | |
| 0.00 | 1.55 | 0.00 | 0.93 | -24.80 | 326.02 | -21.42 | 144.09 | 0.5675 | -838.0 | -551.9 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -24.04 | 325.99 | -21.46 | 143.15 | 0.5594 | -770.0 | -639.1 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -25.75 | 325.56 | -21.89 | 144.60 | 0.5817 | -562.0 | -434.0 | |
| 0.00 | 2.06 | 0.00 | 1.24 | -24.57 | 325.75 | -21.70 | 143.49 | 0.5673 | -643.0 | -535.2 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -24.88 | 325.59 | -21.86 | 143.64 | 0.5720 | -649.0 | -566.4 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -24.01 | 325.75 | -21.70 | 142.82 | 0.5612 | -805.0 | -655.0 | |
| 0.00 | 2.75 | 0.00 | 1.67 | -25.28 | 325.44 | -22.01 | 143.93 | 0.5776 | -573.0 | -556.9 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -30.50 | 324.13 | -23.31 | 147.89 | 0.6438 | -643.0 | -509.5 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -25.66 | 325.05 | -22.40 | 143.88 | 0.5850 | -552.0 | -483.5 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -24.06 | 325.07 | -22.38 | 142.06 | 0.5676 | -509.0 | -358.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
