SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.72 | 31.37 | 41.96 | 107.07 | -15.15 | 266.93 | -80.51 | 105.74 | 0.9898 | 48.9 | -0.9 | |
|
previous
or next observation for the same group /

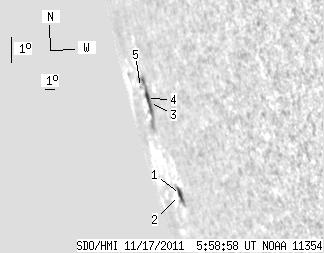

back to the solar disc SDO HMI 2011-11-17 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.18 | 8.25 | 9.85 | 25.93 | -17.31 | 267.86 | -79.59 | 108.00 | 0.9881 | 199.9 | 106.8 | |
| 2.32 | -1.00 | 7.48 | -1.00 | -17.35 | 267.60 | -79.85 | 108.02 | 0.9887 | -240.6 | 999999 | |
| 5.33 | 22.00 | 18.02 | 76.83 | -14.50 | 266.84 | -80.60 | 105.08 | 0.9899 | 212.0 | 11.5 | |
| 1.89 | -3.00 | 6.61 | -3.00 | -14.39 | 266.42 | -81.03 | 104.94 | 0.9909 | -221.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 4.31 | -14.09 | 265.68 | -81.77 | 104.57 | 0.9924 | -426.0 | -365.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
