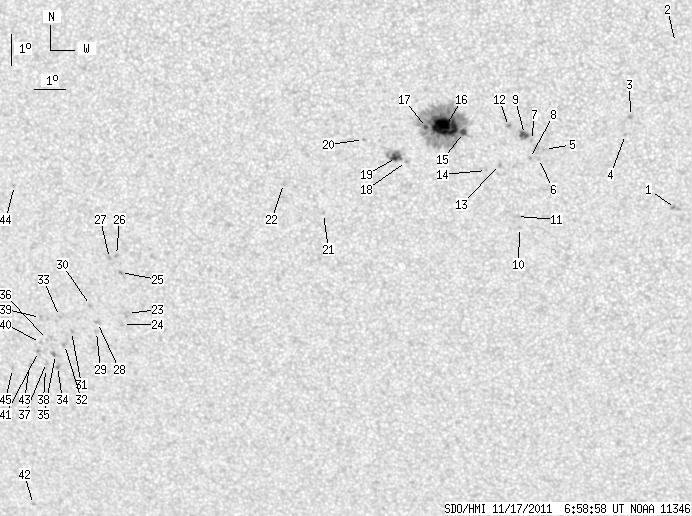

SDO HMI 2011-11-17 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.30 | 236.44 | 23.08 | 128.61 | -19.18 | 337.45 | -9.45 | 158.76 | 0.4061 | 281.5 | 218.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.69 | 0.00 | 1.99 | -20.29 | 346.82 | -0.08 | 179.80 | 0.3911 | 731.0 | 709.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -15.04 | 346.82 | -0.08 | 179.75 | 0.3048 | 792.0 | 491.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -17.36 | 345.42 | -1.48 | 175.88 | 0.3442 | 989.0 | 796.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -17.93 | 345.26 | -1.64 | 175.57 | 0.3537 | 753.0 | 577.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -18.41 | 342.73 | -4.18 | 169.10 | 0.3670 | 734.0 | 623.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.70 | 342.53 | -4.37 | 168.77 | 0.3722 | 725.0 | 622.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.13 | 342.33 | -4.58 | 167.92 | 0.3638 | 924.0 | 742.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.70 | 342.25 | -4.65 | 168.06 | 0.3732 | 808.0 | 701.0 | |
| 4.12 | 6.01 | 2.19 | 3.19 | -17.94 | 342.11 | -4.79 | 167.25 | 0.3615 | 1075.8 | 984.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -20.92 | 341.86 | -5.04 | 168.39 | 0.4093 | 736.0 | 568.4 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -20.56 | 341.78 | -5.12 | 168.01 | 0.4040 | 841.0 | 475.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -17.69 | 341.62 | -5.28 | 165.81 | 0.3594 | 1099.0 | 1012.8 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -18.90 | 341.30 | -5.60 | 165.86 | 0.3797 | 827.0 | 673.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -19.09 | 340.88 | -6.02 | 164.99 | 0.3844 | 867.0 | 634.1 | |
| 3.18 | 152.85 | 1.69 | 81.40 | -17.89 | 340.20 | -6.70 | 162.41 | 0.3688 | 884.8 | 476.2 | |
| 28.87 | -15.00 | 15.37 | -15.00 | -17.70 | 339.65 | -7.26 | 160.87 | 0.3688 | 1361.9 | 999999 | |
| 1.55 | -15.00 | 0.82 | -15.00 | -17.74 | 339.05 | -7.85 | 159.47 | 0.3727 | 774.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -18.82 | 338.37 | -8.54 | 158.95 | 0.3929 | -404.0 | -389.6 | |
| 5.58 | 12.89 | 3.01 | 6.93 | -18.69 | 338.06 | -8.85 | 158.14 | 0.3928 | -776.3 | -410.7 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -18.13 | 337.04 | -9.86 | 155.29 | 0.3910 | -778.0 | -653.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -20.51 | 335.61 | -11.29 | 154.92 | 0.4346 | 765.0 | 424.7 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -19.56 | 334.39 | -12.51 | 151.53 | 0.4301 | 110.0 | 233.6 | |
| 0.00 | 3.27 | 0.00 | 1.90 | -23.86 | 328.75 | -18.15 | 147.30 | 0.5295 | -535.0 | -482.7 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -24.23 | 328.52 | -18.38 | 147.40 | 0.5358 | -736.0 | -644.1 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -22.51 | 328.70 | -18.20 | 145.68 | 0.5138 | -895.0 | -693.4 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -21.96 | 328.64 | -18.26 | 144.92 | 0.5077 | -906.0 | -756.5 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -22.06 | 328.39 | -18.51 | 144.69 | 0.5111 | -758.0 | -670.6 | |
| 0.00 | 2.84 | 0.00 | 1.67 | -24.18 | 327.67 | -19.23 | 146.18 | 0.5420 | -828.0 | -638.3 | |
| 0.00 | 2.23 | 0.00 | 1.32 | -24.48 | 327.59 | -19.31 | 146.41 | 0.5462 | -527.0 | -465.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -23.62 | 327.52 | -19.38 | 145.34 | 0.5367 | -506.0 | -493.6 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -24.49 | 326.72 | -20.18 | 145.29 | 0.5535 | -839.0 | -667.0 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -24.93 | 326.40 | -20.50 | 145.38 | 0.5611 | -875.0 | -654.1 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -24.00 | 326.39 | -20.51 | 144.30 | 0.5507 | -706.0 | -548.3 | |
| 0.00 | 2.23 | 0.00 | 1.35 | -25.68 | 326.02 | -20.88 | 145.73 | 0.5726 | -675.0 | -598.7 | |
| 0.00 | 3.18 | 0.00 | 1.91 | -25.27 | 326.03 | -20.87 | 145.29 | 0.5680 | -734.0 | -564.7 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -24.77 | 325.84 | -21.06 | 144.49 | 0.5640 | -620.0 | -553.6 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -25.55 | 325.66 | -21.24 | 145.14 | 0.5741 | -575.0 | -484.8 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -25.75 | 325.59 | -21.31 | 145.27 | 0.5770 | -595.0 | -499.8 | |
| 0.00 | 1.98 | 0.00 | 1.18 | -24.04 | 325.72 | -21.18 | 143.50 | 0.5569 | -745.0 | -605.0 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -24.88 | 325.57 | -21.33 | 144.28 | 0.5674 | -657.0 | -485.1 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -25.18 | 325.45 | -21.46 | 144.47 | 0.5718 | -738.0 | -575.1 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -30.47 | 324.13 | -22.78 | 148.42 | 0.6396 | -621.0 | -500.7 | |
| 0.00 | 1.80 | 0.00 | 1.10 | -25.66 | 325.04 | -21.86 | 144.51 | 0.5805 | -573.0 | -475.4 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -19.75 | 325.51 | -21.40 | 137.72 | 0.5124 | -764.0 | -591.2 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -25.77 | 324.41 | -22.49 | 143.90 | 0.5869 | -436.0 | -286.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
