SDO HMI 2011-11-17 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.82 | 74.57 | 29.01 | 105.54 | 9.27 | 55.26 | 69.45 | 278.94 | 0.9360 | -210.4 | -15.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

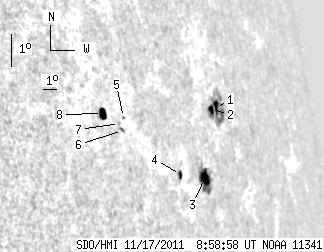

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.26 | 33.68 | 5.03 | 52.22 | 10.05 | 57.22 | 71.41 | 279.73 | 0.9483 | -308.7 | 45.9 | |
| 3.35 | -1.00 | 5.05 | -1.00 | 10.00 | 56.82 | 71.01 | 279.69 | 0.9461 | -614.2 | 999999 | |
| 6.10 | 25.26 | 8.56 | 35.56 | 7.99 | 55.29 | 69.48 | 277.56 | 0.9371 | -615.7 | -183.7 | |
| 2.58 | 3.52 | 3.33 | 4.54 | 8.19 | 53.37 | 67.56 | 277.79 | 0.9250 | -421.8 | -342.5 | |
| 0.00 | 1.03 | 0.00 | 1.16 | 10.05 | 49.82 | 64.01 | 279.91 | 0.9003 | 378.0 | 295.0 | |
| 0.00 | 1.89 | 0.00 | 2.12 | 9.67 | 49.61 | 63.80 | 279.50 | 0.8987 | 470.0 | 417.7 | |
| 0.00 | 1.03 | 0.00 | 1.15 | 9.88 | 49.48 | 63.67 | 279.74 | 0.8978 | 442.0 | 422.6 | |
| 6.53 | 8.16 | 7.04 | 8.79 | 10.23 | 48.46 | 62.65 | 280.17 | 0.8900 | 469.3 | 290.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
