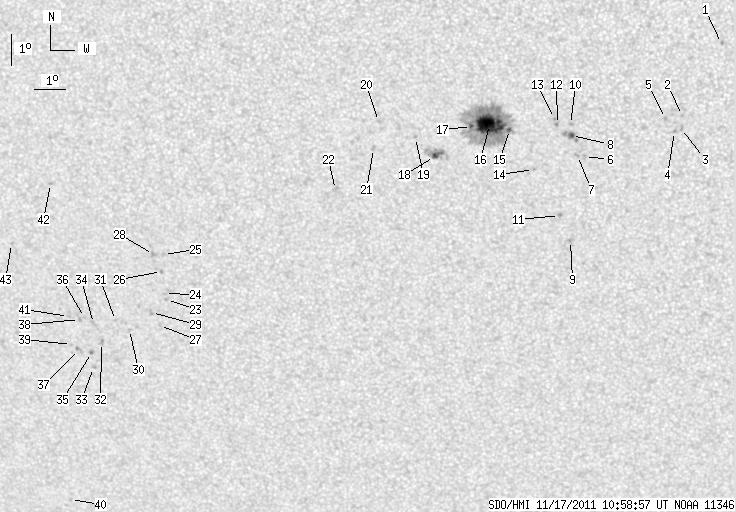

SDO HMI 2011-11-17 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.63 | 240.49 | 21.55 | 129.37 | -18.76 | 337.91 | -6.81 | 164.16 | 0.3859 | 356.8 | 209.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.80 | -15.12 | 346.84 | 2.12 | 186.70 | 0.3079 | 897.0 | 707.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -17.38 | 345.66 | 0.94 | 182.62 | 0.3436 | 912.0 | 693.5 | |
| 0.00 | 2.15 | 0.00 | 1.13 | -17.79 | 345.63 | 0.91 | 182.48 | 0.3503 | 692.0 | 623.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -17.88 | 345.41 | 0.69 | 181.88 | 0.3517 | 835.0 | 624.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.47 | 345.13 | 0.41 | 181.14 | 0.3448 | 903.0 | 737.2 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -18.68 | 342.60 | -2.12 | 174.48 | 0.3662 | 874.0 | 634.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -18.65 | 342.38 | -2.34 | 173.91 | 0.3660 | 906.0 | 732.5 | |
| 2.75 | 6.53 | 1.46 | 3.46 | -18.01 | 342.20 | -2.52 | 173.23 | 0.3561 | 1078.9 | 904.4 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -21.38 | 342.11 | -2.60 | 174.05 | 0.4103 | 881.0 | 705.7 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -17.67 | 342.17 | -2.55 | 173.03 | 0.3505 | 939.0 | 742.0 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -20.57 | 341.78 | -2.94 | 173.04 | 0.3981 | 1041.0 | 812.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -17.67 | 341.77 | -2.95 | 171.94 | 0.3513 | 1117.0 | 845.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.48 | 341.68 | -3.04 | 171.62 | 0.3485 | 783.0 | 744.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.10 | 340.99 | -3.73 | 170.56 | 0.3763 | 787.0 | 628.7 | |
| 1.72 | 157.09 | 0.91 | 83.30 | -17.83 | 340.27 | -4.45 | 168.05 | 0.3582 | 773.7 | 417.4 | |
| 31.95 | -15.00 | 16.94 | -15.00 | -17.67 | 339.65 | -5.07 | 166.34 | 0.3580 | 1294.4 | 999999 | |
| 1.72 | -15.00 | 0.91 | -15.00 | -17.74 | 339.08 | -5.63 | 164.93 | 0.3613 | 751.2 | 999999 | |
| 2.49 | 17.18 | 1.33 | 9.19 | -18.70 | 337.89 | -6.83 | 162.75 | 0.3817 | -797.1 | -420.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.10 | 337.32 | -7.40 | 160.87 | 0.3754 | -962.0 | -714.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.60 | 336.17 | -8.54 | 157.67 | 0.3744 | 749.0 | 600.9 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -18.46 | 335.97 | -8.74 | 158.10 | 0.3884 | 717.0 | 682.9 | |
| 0.00 | 2.58 | 0.00 | 1.40 | -19.77 | 334.69 | -10.03 | 156.67 | 0.4156 | 776.0 | 583.7 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -23.41 | 328.82 | -15.90 | 150.10 | 0.5062 | -662.0 | -528.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.22 | 328.78 | -15.94 | 149.82 | 0.5040 | -577.0 | -577.6 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.94 | 328.90 | -15.82 | 148.56 | 0.4869 | -908.0 | -692.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.49 | 328.77 | -15.95 | 148.99 | 0.4949 | -847.0 | -734.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.28 | 328.48 | -16.24 | 150.49 | 0.5197 | -634.0 | -516.5 | |
| 0.00 | 3.44 | 0.00 | 1.95 | -21.94 | 328.57 | -16.15 | 148.05 | 0.4896 | -892.0 | -717.4 | |
| 0.00 | 2.32 | 0.00 | 1.34 | -23.85 | 328.26 | -16.46 | 149.72 | 0.5159 | -750.0 | -630.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -24.43 | 327.44 | -17.28 | 149.13 | 0.5293 | -611.0 | -568.9 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -24.13 | 327.00 | -17.72 | 148.20 | 0.5291 | -822.0 | -598.1 | |
| 0.00 | 2.32 | 0.00 | 1.37 | -24.87 | 326.41 | -18.31 | 148.18 | 0.5427 | -766.0 | -643.0 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -25.72 | 326.00 | -18.72 | 148.52 | 0.5559 | -706.0 | -571.6 | |
| 0.00 | 2.32 | 0.00 | 1.36 | -24.24 | 326.23 | -18.49 | 147.25 | 0.5365 | -915.0 | -677.6 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -25.22 | 326.01 | -18.71 | 148.01 | 0.5498 | -793.0 | -728.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -24.05 | 325.95 | -18.77 | 146.65 | 0.5365 | -844.0 | -681.2 | |
| 0.00 | 2.83 | 0.00 | 1.68 | -25.12 | 325.61 | -19.11 | 147.37 | 0.5518 | -751.0 | -606.0 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -24.12 | 325.77 | -18.95 | 146.48 | 0.5388 | -798.0 | -624.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -24.96 | 325.36 | -19.36 | 146.86 | 0.5519 | -455.0 | -428.1 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -30.30 | 324.31 | -20.41 | 150.89 | 0.6211 | -605.0 | -486.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -24.03 | 325.41 | -19.31 | 145.88 | 0.5407 | -599.0 | -538.7 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -19.69 | 325.41 | -19.31 | 140.45 | 0.4909 | -751.0 | -619.0 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -21.66 | 323.82 | -20.90 | 140.91 | 0.5279 | -744.0 | -612.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
