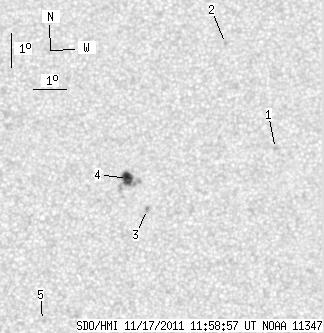

SDO HMI 2011-11-17 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.36 | 25.59 | 4.66 | 12.77 | 8.31 | 347.37 | 3.20 | 332.34 | 0.1154 | 361.5 | 233.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.03 | 351.27 | 7.10 | 312.61 | 0.1667 | -925.0 | -617.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 12.18 | 349.82 | 5.65 | 329.98 | 0.1933 | -897.0 | -573.7 | |
| 0.00 | 2.32 | 0.00 | 1.15 | 7.23 | 347.40 | 3.23 | 325.30 | 0.0987 | -967.0 | -792.1 | |
| 9.36 | 18.72 | 4.66 | 9.33 | 8.15 | 346.81 | 2.64 | 334.78 | 0.1075 | 1161.5 | 814.0 | |
| 0.00 | 0.69 | 0.00 | 0.34 | 3.94 | 344.27 | 0.10 | 355.94 | 0.0236 | 507.0 | 517.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
