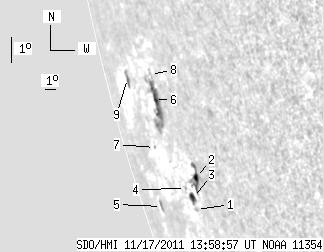

SDO HMI 2011-11-17 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.10 | 58.04 | 12.82 | 137.03 | -15.25 | 266.43 | -76.65 | 106.22 | 0.9780 | 87.4 | 50.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 2.76 | -17.63 | 268.04 | -75.04 | 108.82 | 0.9737 | 285.0 | 189.8 | |
| 2.15 | 13.39 | 4.22 | 26.62 | -16.58 | 269.11 | -73.97 | 107.88 | 0.9690 | 177.7 | 152.0 | |
| 2.83 | 5.32 | 6.01 | 11.35 | -17.25 | 268.13 | -74.95 | 108.44 | 0.9732 | 240.0 | 1.3 | |
| 0.00 | 0.69 | 0.00 | 1.52 | -17.00 | 267.43 | -75.65 | 108.10 | 0.9757 | -415.0 | -367.6 | |
| 0.00 | 2.49 | 0.00 | 8.64 | -17.79 | 262.52 | -80.55 | 108.39 | 0.9905 | 262.0 | 151.7 | |
| 1.12 | 27.56 | 2.59 | 63.85 | -14.29 | 266.51 | -76.57 | 105.23 | 0.9779 | -185.2 | 96.4 | |
| 0.00 | 0.86 | 0.00 | 2.37 | -15.86 | 264.55 | -78.53 | 106.63 | 0.9847 | -289.0 | -261.8 | |
| 0.00 | 0.77 | 0.00 | 1.74 | -13.50 | 266.79 | -76.28 | 104.47 | 0.9765 | 298.0 | 271.6 | |
| 0.00 | 5.67 | 0.00 | 18.18 | -13.80 | 262.91 | -80.16 | 104.41 | 0.9886 | -209.0 | -232.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
