SDO HMI 2011-11-17 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.93 | 233.78 | 21.12 | 125.69 | -19.06 | 337.62 | -4.90 | 169.12 | 0.3836 | 233.8 | 216.0 | |
|
previous
or next observation for the same group /

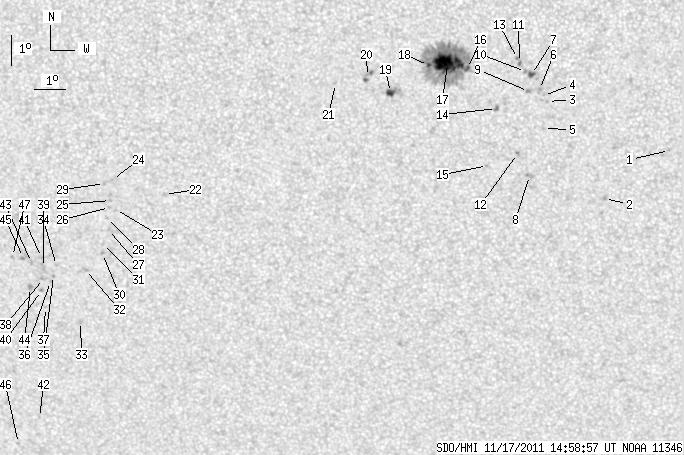

back to the solar disc SDO HMI 2011-11-17 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.45 | 346.65 | 4.12 | 189.77 | 0.3988 | 763.0 | 577.0 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -22.00 | 344.61 | 2.09 | 184.64 | 0.4193 | 775.0 | 566.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.87 | 342.78 | 0.26 | 180.67 | 0.3676 | 722.0 | 604.8 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.68 | 342.66 | 0.13 | 180.35 | 0.3644 | 791.0 | 645.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -19.74 | 342.66 | 0.13 | 180.33 | 0.3816 | 772.0 | 578.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.49 | 342.53 | 0.01 | 180.02 | 0.3613 | 937.0 | 799.5 | |
| 2.83 | 6.87 | 1.50 | 3.63 | -18.02 | 342.28 | -0.24 | 179.35 | 0.3536 | 1037.1 | 747.6 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -21.25 | 342.22 | -0.31 | 179.29 | 0.4060 | 856.0 | 700.0 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -18.56 | 342.19 | -0.34 | 179.12 | 0.3624 | 844.0 | 669.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -17.92 | 342.10 | -0.43 | 178.84 | 0.3521 | 951.0 | 724.3 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -17.64 | 341.91 | -0.61 | 178.31 | 0.3475 | 967.0 | 884.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -20.54 | 341.84 | -0.69 | 178.36 | 0.3947 | 1044.0 | 794.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -17.51 | 341.85 | -0.67 | 178.13 | 0.3454 | 1065.0 | 810.2 | |
| 0.00 | 2.92 | 0.00 | 1.56 | -19.10 | 341.18 | -1.34 | 176.58 | 0.3719 | 828.0 | 707.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.93 | 340.88 | -1.64 | 176.17 | 0.4017 | 623.0 | 492.8 | |
| 1.72 | 152.55 | 0.91 | 80.65 | -17.83 | 340.29 | -2.23 | 173.93 | 0.3524 | 771.7 | 453.8 | |
| 30.05 | -16.00 | 15.88 | -16.00 | -17.67 | 339.67 | -2.85 | 172.20 | 0.3511 | 1321.5 | 999999 | |
| 1.12 | -16.00 | 0.59 | -16.00 | -17.74 | 339.08 | -3.45 | 170.64 | 0.3536 | 751.2 | 999999 | |
| 4.21 | 7.90 | 2.24 | 4.21 | -18.60 | 337.87 | -4.65 | 167.98 | 0.3710 | -790.1 | 32.3 | |
| 0.00 | 6.01 | 0.00 | 3.20 | -18.09 | 337.16 | -5.36 | 165.88 | 0.3656 | -780.0 | -774.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.32 | 336.15 | -6.37 | 163.55 | 0.3735 | 760.0 | 524.6 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -21.93 | 330.47 | -12.06 | 154.92 | 0.4591 | -192.0 | -219.4 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -22.44 | 328.81 | -13.71 | 152.55 | 0.4774 | -733.0 | -603.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -21.46 | 328.81 | -13.72 | 151.50 | 0.4644 | -783.0 | -656.0 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.15 | 328.67 | -13.85 | 152.01 | 0.4745 | -843.0 | -664.1 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -22.37 | 328.62 | -13.91 | 152.16 | 0.4779 | -707.0 | -541.2 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -23.10 | 328.51 | -14.02 | 152.74 | 0.4883 | -880.0 | -709.3 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -22.70 | 328.48 | -14.04 | 152.29 | 0.4832 | -710.0 | -524.8 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -21.59 | 328.53 | -13.99 | 151.17 | 0.4682 | -782.0 | -681.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -23.89 | 328.22 | -14.30 | 153.07 | 0.5008 | -896.0 | -737.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -23.56 | 328.26 | -14.27 | 152.80 | 0.4962 | -668.0 | -585.2 | |
| 0.00 | 2.32 | 0.00 | 1.33 | -24.43 | 327.59 | -14.94 | 152.61 | 0.5122 | -827.0 | -650.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -26.18 | 327.19 | -15.33 | 153.69 | 0.5375 | -732.0 | -528.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.31 | 326.62 | -15.90 | 151.03 | 0.5175 | -860.0 | -707.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -24.65 | 326.48 | -16.05 | 151.15 | 0.5228 | -660.0 | -622.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.85 | 326.35 | -16.18 | 151.17 | 0.5263 | -690.0 | -617.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -25.72 | 326.06 | -16.47 | 151.62 | 0.5394 | -750.0 | -547.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -24.75 | 326.12 | -16.40 | 150.74 | 0.5267 | -657.0 | -663.3 | |
| 0.00 | 4.03 | 0.00 | 2.34 | -24.38 | 326.17 | -16.35 | 150.43 | 0.5217 | -828.0 | -689.9 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -25.15 | 326.00 | -16.52 | 150.97 | 0.5326 | -905.0 | -737.9 | |
| 0.00 | 2.58 | 0.00 | 1.49 | -24.05 | 326.15 | -16.37 | 150.05 | 0.5177 | -858.0 | -565.6 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -29.51 | 325.24 | -17.28 | 153.98 | 0.5916 | -771.0 | -568.6 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -24.22 | 325.79 | -16.74 | 149.70 | 0.5226 | -796.0 | -664.1 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -25.06 | 325.64 | -16.89 | 150.35 | 0.5341 | -732.0 | -668.0 | |
| 0.00 | 2.40 | 0.00 | 1.39 | -24.06 | 325.54 | -16.99 | 149.16 | 0.5224 | -618.0 | -678.9 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -30.44 | 324.32 | -18.21 | 153.62 | 0.6086 | -579.0 | -487.6 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -24.03 | 325.17 | -17.36 | 148.60 | 0.5250 | -621.0 | -540.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
