SDO HMI 2011-11-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.33 | 238.94 | 18.14 | 128.06 | -18.95 | 337.68 | -3.19 | 173.37 | 0.3779 | 257.3 | 225.8 | |
|
previous
or next observation for the same group /

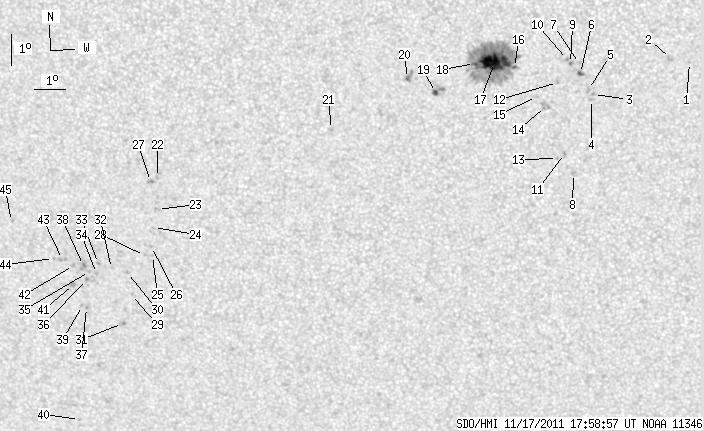

back to the solar disc SDO HMI 2011-11-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.68 | -17.65 | 345.76 | 4.89 | 193.23 | 0.3567 | 864.0 | 523.4 | |
| 0.00 | 3.09 | 0.00 | 1.63 | -17.52 | 345.17 | 4.30 | 191.75 | 0.3526 | 654.0 | 698.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.66 | 342.78 | 1.91 | 184.99 | 0.3653 | 917.0 | 753.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -18.81 | 342.72 | 1.85 | 184.80 | 0.3678 | 711.0 | 544.4 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -18.50 | 342.63 | 1.76 | 184.62 | 0.3625 | 950.0 | 783.7 | |
| 0.86 | 2.66 | 0.45 | 1.41 | -17.99 | 342.37 | 1.50 | 184.06 | 0.3539 | 1172.0 | 968.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.67 | 342.34 | 1.47 | 184.03 | 0.3486 | 825.0 | 687.9 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -21.19 | 342.18 | 1.31 | 183.03 | 0.4055 | 876.0 | 597.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.67 | 342.06 | 1.19 | 183.27 | 0.3483 | 1147.0 | 986.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.55 | 341.96 | 1.09 | 183.03 | 0.3462 | 1048.0 | 780.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.54 | 341.89 | 1.02 | 182.43 | 0.3949 | 947.0 | 782.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.27 | 341.66 | 0.79 | 182.10 | 0.3579 | 722.0 | 632.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -20.70 | 341.67 | 0.80 | 181.89 | 0.3973 | 805.0 | 638.8 | |
| 0.00 | 6.01 | 0.00 | 3.20 | -19.04 | 341.28 | 0.41 | 181.06 | 0.3702 | 802.0 | 673.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -18.72 | 341.00 | 0.13 | 180.34 | 0.3649 | 791.0 | 609.0 | |
| 1.37 | 159.56 | 0.73 | 84.25 | -17.80 | 340.32 | -0.55 | 178.49 | 0.3500 | 743.3 | 451.7 | |
| 28.58 | -16.00 | 15.09 | -16.00 | -17.64 | 339.70 | -1.17 | 176.77 | 0.3478 | 1346.2 | 999999 | |
| 0.69 | -16.00 | 0.36 | -16.00 | -17.67 | 339.07 | -1.80 | 175.07 | 0.3491 | 737.2 | 999999 | |
| 2.40 | 6.95 | 1.28 | 3.70 | -18.59 | 337.84 | -3.03 | 172.11 | 0.3663 | -883.8 | -34.2 | |
| 0.43 | 5.06 | 0.23 | 2.69 | -18.15 | 336.98 | -3.89 | 169.67 | 0.3614 | -930.8 | -809.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -19.79 | 334.54 | -6.33 | 164.74 | 0.3960 | 801.0 | 494.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.38 | 328.86 | -12.01 | 154.44 | 0.4511 | -821.0 | -737.3 | |
| 0.00 | 2.32 | 0.00 | 1.30 | -22.42 | 328.77 | -12.10 | 155.32 | 0.4662 | -871.0 | -682.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -23.01 | 328.58 | -12.29 | 155.57 | 0.4755 | -790.0 | -721.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.94 | 328.46 | -12.41 | 156.22 | 0.4890 | -835.0 | -647.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -23.64 | 328.46 | -12.41 | 155.94 | 0.4849 | -781.0 | -629.9 | |
| 0.00 | 2.32 | 0.00 | 1.29 | -21.51 | 328.62 | -12.25 | 154.14 | 0.4546 | -910.0 | -814.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -23.94 | 328.19 | -12.67 | 155.77 | 0.4907 | -725.0 | -590.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -25.25 | 327.62 | -13.25 | 156.01 | 0.5119 | -633.0 | -448.6 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -24.51 | 327.57 | -13.30 | 155.27 | 0.5024 | -855.0 | -695.9 | |
| 0.00 | 2.23 | 0.00 | 1.30 | -26.23 | 327.20 | -13.67 | 156.21 | 0.5276 | -735.0 | -644.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -24.39 | 327.05 | -13.82 | 154.31 | 0.5041 | -676.0 | -560.0 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -24.23 | 326.63 | -14.24 | 153.49 | 0.5047 | -928.0 | -608.4 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -24.56 | 326.52 | -14.35 | 153.65 | 0.5098 | -767.0 | -574.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.50 | 326.29 | -14.57 | 153.23 | 0.5105 | -895.0 | -727.7 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -24.76 | 326.16 | -14.71 | 153.28 | 0.5149 | -801.0 | -682.6 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -25.70 | 326.04 | -14.83 | 153.99 | 0.5279 | -725.0 | -617.3 | |
| 0.00 | 4.55 | 0.00 | 2.61 | -24.30 | 326.12 | -14.75 | 152.76 | 0.5091 | -1010.0 | -800.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -25.64 | 325.92 | -14.95 | 153.74 | 0.5279 | -522.0 | -487.2 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -29.56 | 325.25 | -15.62 | 156.18 | 0.5822 | -702.0 | -557.9 | |
| 0.00 | 3.52 | 0.00 | 2.04 | -24.94 | 325.70 | -15.17 | 152.75 | 0.5203 | -794.0 | -620.7 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -24.30 | 325.78 | -15.09 | 152.24 | 0.5115 | -864.0 | -661.3 | |
| 0.00 | 3.09 | 0.00 | 1.78 | -24.11 | 325.43 | -15.44 | 151.51 | 0.5115 | -679.0 | -641.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -24.08 | 325.13 | -15.74 | 151.03 | 0.5133 | -729.0 | -564.9 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -22.87 | 323.87 | -17.00 | 147.82 | 0.5078 | -620.0 | -533.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
