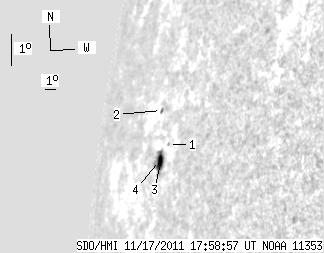

SDO HMI 2011-11-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.36 | 17.09 | 12.20 | 32.90 | 7.93 | 265.63 | -75.24 | 82.48 | 0.9672 | -0.1 | 38.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 2.04 | 8.28 | 266.36 | -74.51 | 82.13 | 0.9639 | 207.0 | 200.9 | |
| 0.69 | 1.72 | 1.37 | 3.43 | 9.24 | 264.95 | -75.92 | 81.12 | 0.9701 | -178.4 | -19.9 | |
| 2.92 | 14.25 | 5.55 | 27.43 | 7.71 | 265.73 | -75.14 | 82.71 | 0.9668 | -264.1 | 25.0 | |
| 2.75 | -3.00 | 5.28 | -3.00 | 7.76 | 265.58 | -75.29 | 82.65 | 0.9674 | 284.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
