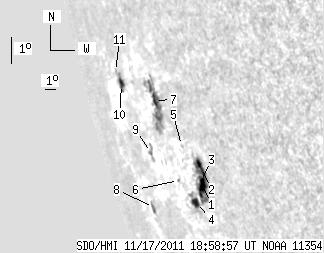

SDO HMI 2011-11-17 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.34 | 104.71 | 43.09 | 200.26 | -15.36 | 266.78 | -73.54 | 106.70 | 0.9659 | 195.4 | 11.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-17 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.06 | 32.70 | 8.37 | 54.11 | -16.69 | 269.40 | -70.92 | 108.40 | 0.9553 | 482.6 | 85.8 | |
| 5.58 | -1.00 | 9.02 | -1.00 | -16.15 | 269.77 | -70.55 | 107.88 | 0.9531 | 470.6 | 999999 | |
| 0.60 | -1.00 | 1.00 | -1.00 | -16.61 | 269.28 | -71.04 | 108.29 | 0.9558 | -300.4 | 999999 | |
| 4.12 | 10.39 | 7.30 | 18.53 | -17.31 | 268.23 | -72.09 | 108.87 | 0.9613 | 329.1 | -111.2 | |
| 0.00 | 0.77 | 0.00 | 1.34 | -15.53 | 268.35 | -71.97 | 107.05 | 0.9596 | -347.0 | -340.4 | |
| 0.00 | 1.12 | 0.00 | 2.12 | -16.68 | 266.95 | -73.37 | 108.05 | 0.9665 | -411.0 | -386.0 | |
| 4.03 | 39.91 | 7.62 | 75.98 | -14.21 | 266.64 | -73.67 | 105.48 | 0.9665 | 482.7 | 127.2 | |
| 0.00 | 3.43 | 0.00 | 9.17 | -17.73 | 262.48 | -77.83 | 108.59 | 0.9832 | -121.0 | -4.0 | |
| 0.00 | 6.35 | 0.00 | 13.99 | -15.91 | 264.59 | -75.73 | 106.98 | 0.9755 | -152.0 | -236.5 | |
| 3.95 | 9.01 | 9.78 | 22.38 | -13.89 | 262.83 | -77.49 | 104.74 | 0.9808 | -362.1 | -295.9 | |
| 0.00 | 1.03 | 0.00 | 2.64 | -13.51 | 262.38 | -77.93 | 104.31 | 0.9822 | -97.0 | -127.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
