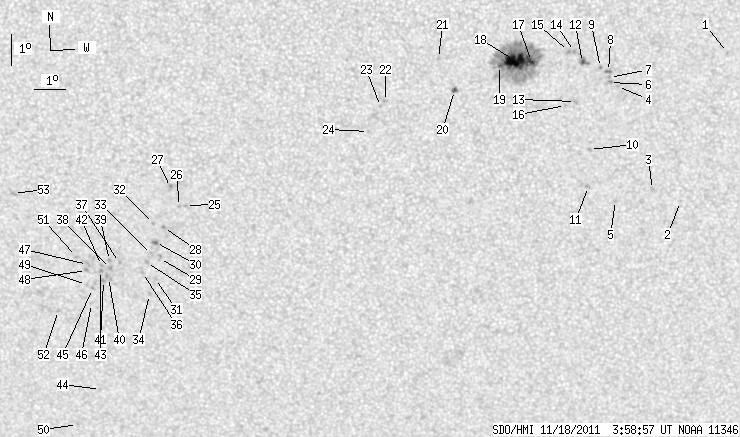

SDO HMI 2011-11-18 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.82 | 230.33 | 13.16 | 123.53 | -19.10 | 337.29 | 1.93 | 186.40 | 0.3807 | 120.4 | 249.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.65 | -17.31 | 346.30 | 10.94 | 208.15 | 0.3857 | 640.0 | 515.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -22.07 | 345.10 | 9.75 | 200.67 | 0.4462 | 682.0 | 434.2 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -21.68 | 344.17 | 8.81 | 199.17 | 0.4354 | 704.0 | 533.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.36 | 342.88 | 7.52 | 199.23 | 0.3789 | 950.0 | 760.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -22.03 | 343.00 | 7.64 | 196.53 | 0.4349 | 705.0 | 529.1 | |
| 0.00 | 3.01 | 0.00 | 1.61 | -18.23 | 342.62 | 7.27 | 198.74 | 0.3756 | 1017.0 | 757.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -18.07 | 342.62 | 7.26 | 198.87 | 0.3731 | 986.0 | 811.3 | |
| 0.00 | 2.58 | 0.00 | 1.37 | -17.88 | 342.58 | 7.22 | 198.95 | 0.3700 | 1145.0 | 903.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.76 | 342.32 | 6.96 | 198.44 | 0.3667 | 1023.0 | 898.7 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -20.37 | 342.08 | 6.72 | 195.77 | 0.4057 | 924.0 | 640.8 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -21.57 | 342.11 | 6.75 | 195.00 | 0.4241 | 668.0 | 559.7 | |
| 1.63 | 4.72 | 0.87 | 2.51 | -17.59 | 341.75 | 6.39 | 197.16 | 0.3613 | 996.9 | 920.0 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -18.83 | 341.58 | 6.22 | 195.73 | 0.3797 | 796.0 | 681.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.25 | 341.49 | 6.13 | 196.79 | 0.3547 | 1033.0 | 913.9 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -17.25 | 341.30 | 5.94 | 196.31 | 0.3538 | 945.0 | 867.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.96 | 341.27 | 5.91 | 194.90 | 0.3804 | 680.0 | 465.4 | |
| 1.80 | 149.36 | 0.95 | 79.01 | -17.56 | 340.16 | 4.80 | 193.08 | 0.3539 | 1044.1 | 480.3 | |
| 16.83 | -17.00 | 8.90 | -17.00 | -17.52 | 339.63 | 4.27 | 191.70 | 0.3515 | 1416.4 | 999999 | |
| 1.55 | -17.00 | 0.82 | -17.00 | -17.68 | 339.16 | 3.80 | 190.38 | 0.3526 | 846.7 | 999999 | |
| 1.89 | 2.66 | 1.00 | 1.41 | -18.47 | 337.77 | 2.41 | 186.36 | 0.3620 | -814.9 | -759.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.45 | 337.26 | 1.90 | 185.30 | 0.3447 | 834.0 | 563.7 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -18.81 | 335.62 | 0.26 | 180.67 | 0.3655 | 931.0 | 679.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.97 | 335.46 | 0.10 | 180.26 | 0.3681 | 910.0 | 721.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.77 | 335.08 | -0.28 | 179.32 | 0.3811 | 723.0 | 566.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -22.18 | 329.21 | -6.15 | 166.64 | 0.4312 | -772.0 | -591.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -22.21 | 329.02 | -6.34 | 166.26 | 0.4324 | -673.0 | -547.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -21.60 | 328.75 | -6.60 | 165.33 | 0.4240 | -995.0 | -882.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -22.91 | 328.47 | -6.89 | 165.55 | 0.4450 | -1121.0 | -870.0 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -23.93 | 328.28 | -7.08 | 165.80 | 0.4612 | -597.0 | -644.3 | |
| 1.12 | 2.75 | 0.62 | 1.53 | -23.40 | 328.18 | -7.18 | 165.29 | 0.4536 | -942.9 | -761.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -24.59 | 328.11 | -7.25 | 165.87 | 0.4717 | -760.0 | -559.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.78 | 328.15 | -7.21 | 164.84 | 0.4444 | -941.0 | -759.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -23.80 | 328.03 | -7.33 | 165.24 | 0.4602 | -780.0 | -585.6 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -25.13 | 327.88 | -7.48 | 165.75 | 0.4806 | -580.0 | -515.5 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -24.06 | 327.85 | -7.51 | 165.06 | 0.4649 | -917.0 | -768.4 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.40 | 327.70 | -7.66 | 164.98 | 0.4704 | -938.0 | -740.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -24.07 | 326.96 | -8.40 | 163.40 | 0.4687 | -884.0 | -688.0 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -24.27 | 326.65 | -8.71 | 162.97 | 0.4730 | -914.0 | -778.8 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -24.01 | 326.64 | -8.72 | 162.76 | 0.4692 | -1022.0 | -777.7 | |
| 0.00 | 2.92 | 0.00 | 1.64 | -24.57 | 326.57 | -8.79 | 163.01 | 0.4778 | -705.0 | -767.8 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -24.67 | 326.39 | -8.97 | 162.77 | 0.4800 | -856.0 | -716.1 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -24.17 | 326.36 | -9.00 | 162.37 | 0.4729 | -1019.0 | -784.3 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.34 | 326.32 | -9.04 | 162.40 | 0.4755 | -1059.0 | -920.6 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -28.38 | 325.99 | -9.37 | 164.41 | 0.5348 | -588.0 | -553.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -24.94 | 326.01 | -9.35 | 162.27 | 0.4857 | -737.0 | -609.7 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -25.45 | 325.94 | -9.42 | 162.49 | 0.4933 | -585.0 | -485.6 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -24.14 | 325.90 | -9.45 | 161.51 | 0.4747 | -702.0 | -652.6 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -24.34 | 325.86 | -9.50 | 161.57 | 0.4778 | -837.0 | -681.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.81 | 325.82 | -9.54 | 161.85 | 0.4847 | -736.0 | -544.8 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -29.60 | 325.08 | -10.28 | 163.72 | 0.5556 | -662.0 | -476.4 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -23.88 | 325.56 | -9.80 | 160.70 | 0.4726 | -760.0 | -622.6 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -25.69 | 324.81 | -10.54 | 160.75 | 0.5022 | -783.0 | -590.6 | |
| 0.00 | 2.15 | 0.00 | 1.19 | -21.83 | 323.66 | -11.69 | 155.43 | 0.4544 | -887.0 | -753.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
