SDO HMI 2011-11-18 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.83 | 18.89 | 8.57 | 62.21 | 9.06 | 55.82 | 81.55 | 278.79 | 0.9887 | -76.7 | 21.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

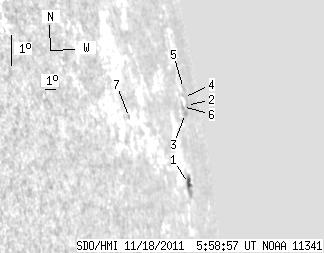

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.83 | 9.71 | 8.57 | 29.79 | 7.84 | 55.12 | 80.86 | 277.54 | 0.9873 | -187.8 | -51.8 | |
| 0.00 | 1.46 | 0.00 | 5.78 | 10.10 | 57.28 | 83.01 | 279.87 | 0.9924 | 419.0 | 373.6 | |
| 0.00 | 2.40 | 0.00 | 8.75 | 9.88 | 56.72 | 82.45 | 279.63 | 0.9912 | -113.0 | -70.0 | |
| 0.00 | 0.34 | 0.00 | 1.27 | 10.36 | 56.91 | 82.64 | 280.12 | 0.9916 | -187.0 | -152.0 | |
| 0.00 | 2.15 | 0.00 | 8.40 | 10.61 | 57.30 | 83.03 | 280.38 | 0.9925 | 196.0 | 151.0 | |
| 0.00 | 1.89 | 0.00 | 6.52 | 10.11 | 56.33 | 82.06 | 279.86 | 0.9903 | -134.0 | -118.2 | |
| 0.00 | 0.94 | 0.00 | 1.70 | 10.11 | 48.39 | 74.13 | 279.80 | 0.9622 | 311.0 | 241.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
