SDO HMI 2011-11-18 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 13.05 | 1.36 | 6.67 | 7.82 | 347.65 | 13.39 | 292.35 | 0.2489 | 166.1 | 434.6 | |
|
previous
or next observation for the same group /

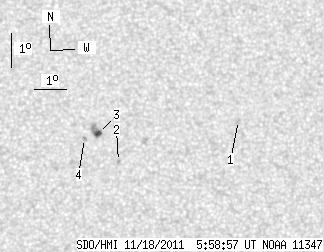

back to the solar disc SDO HMI 2011-11-18 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.76 | 8.23 | 351.51 | 17.24 | 289.09 | 0.3118 | -781.0 | -603.1 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 7.05 | 347.74 | 13.48 | 289.15 | 0.2460 | -1004.0 | -792.9 | |
| 2.66 | 8.33 | 1.36 | 4.25 | 7.89 | 347.15 | 12.89 | 293.23 | 0.2415 | 1058.9 | 895.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 7.74 | 346.72 | 12.46 | 293.34 | 0.2338 | 1069.0 | 765.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
