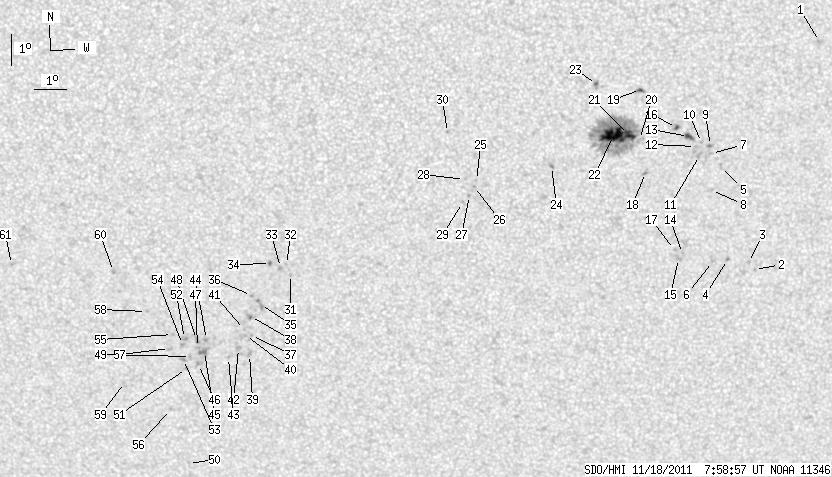

SDO HMI 2011-11-18 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.86 | 248.49 | 18.53 | 133.83 | -19.37 | 336.79 | 3.62 | 190.54 | 0.3908 | 165.0 | 155.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.78 | -14.64 | 345.97 | 12.79 | 216.12 | 0.3650 | 838.0 | 620.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -21.85 | 344.40 | 11.22 | 203.70 | 0.4513 | 667.0 | 609.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -21.62 | 344.18 | 11.01 | 203.52 | 0.4468 | 621.0 | 568.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -21.52 | 343.50 | 10.32 | 202.30 | 0.4411 | 793.0 | 654.3 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -18.53 | 343.08 | 9.90 | 204.47 | 0.3953 | 723.0 | 597.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -21.58 | 343.01 | 9.84 | 201.31 | 0.4392 | 833.0 | 730.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -18.12 | 342.77 | 9.59 | 204.26 | 0.3872 | 920.0 | 716.0 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -19.30 | 342.84 | 9.66 | 203.14 | 0.4048 | 855.0 | 566.4 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -17.86 | 342.72 | 9.55 | 204.44 | 0.3832 | 1012.0 | 870.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.77 | 342.43 | 9.26 | 203.90 | 0.3799 | 996.0 | 738.8 | |
| 0.00 | 2.92 | 0.00 | 1.57 | -18.18 | 342.39 | 9.22 | 203.35 | 0.3856 | 806.0 | 688.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.89 | 342.25 | 9.08 | 203.34 | 0.3805 | 783.0 | 587.1 | |
| 3.69 | 4.29 | 1.97 | 2.29 | -17.58 | 342.01 | 8.84 | 203.14 | 0.3743 | 1021.6 | 810.1 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -21.32 | 342.03 | 8.85 | 199.58 | 0.4298 | 841.0 | 550.3 | |
| 0.00 | 3.35 | 0.00 | 1.84 | -21.48 | 341.91 | 8.74 | 199.20 | 0.4316 | 774.0 | 603.1 | |
| 1.37 | 3.52 | 0.73 | 1.87 | -17.29 | 341.62 | 8.45 | 202.54 | 0.3676 | 1012.3 | 777.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.18 | 341.76 | 8.59 | 199.14 | 0.4265 | 757.0 | 579.5 | |
| 0.00 | 2.58 | 0.00 | 1.38 | -18.71 | 340.71 | 7.54 | 198.98 | 0.3838 | -833.0 | -740.1 | |
| 1.20 | 3.18 | 0.63 | 1.67 | -16.09 | 340.45 | 7.27 | 200.91 | 0.3423 | 876.6 | 682.8 | |
| 0.00 | 3.61 | 0.00 | 1.92 | -17.66 | 340.48 | 7.30 | 199.39 | 0.3665 | 550.0 | 526.5 | |
| 5.75 | 136.21 | 3.06 | 72.28 | -17.50 | 340.13 | 6.95 | 198.67 | 0.3622 | 1083.5 | 495.6 | |
| 20.01 | -21.00 | 10.62 | -21.00 | -17.53 | 339.66 | 6.49 | 197.47 | 0.3603 | 1325.7 | 999999 | |
| 1.29 | 2.83 | 0.68 | 1.49 | -15.93 | 339.08 | 5.90 | 197.39 | 0.3324 | -794.2 | -763.2 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -18.50 | 337.75 | 4.57 | 191.92 | 0.3677 | -935.0 | -742.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.94 | 335.41 | 2.23 | 185.76 | 0.3689 | 901.0 | 684.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.13 | 335.35 | 2.17 | 185.55 | 0.3719 | 904.0 | 753.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.42 | 335.19 | 2.02 | 185.09 | 0.3763 | 760.0 | 727.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.91 | 335.03 | 1.86 | 184.80 | 0.3678 | 693.0 | 464.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.64 | 334.98 | 1.80 | 184.49 | 0.3796 | 785.0 | 613.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.42 | 334.49 | 1.31 | 183.67 | 0.3428 | 831.0 | 682.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -21.97 | 329.51 | -3.67 | 171.84 | 0.4201 | -668.0 | -568.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.65 | 329.39 | -3.79 | 171.46 | 0.4153 | -855.0 | -741.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -21.74 | 329.19 | -3.98 | 171.07 | 0.4173 | -940.0 | -762.9 | |
| 1.55 | 1.63 | 0.84 | 0.89 | -21.62 | 328.88 | -4.30 | 170.32 | 0.4161 | -914.7 | -986.0 | |
| 0.00 | 3.95 | 0.00 | 2.17 | -22.96 | 328.51 | -4.66 | 170.12 | 0.4380 | -976.0 | -795.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.66 | 328.23 | -4.94 | 169.40 | 0.4342 | -796.0 | -773.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -23.98 | 328.18 | -4.99 | 169.88 | 0.4546 | -740.0 | -606.8 | |
| 0.00 | 4.21 | 0.00 | 2.32 | -23.35 | 328.17 | -5.00 | 169.59 | 0.4450 | -927.0 | -603.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -24.61 | 328.09 | -5.08 | 169.97 | 0.4645 | -695.0 | -601.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.98 | 327.99 | -5.19 | 169.50 | 0.4552 | -756.0 | -672.3 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -23.78 | 327.96 | -5.21 | 169.36 | 0.4522 | -797.0 | -684.9 | |
| 0.00 | 2.75 | 0.00 | 1.53 | -24.41 | 327.74 | -5.43 | 169.21 | 0.4625 | -700.0 | -636.9 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -24.72 | 327.40 | -5.78 | 168.69 | 0.4681 | -805.0 | -631.4 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -24.12 | 326.71 | -6.47 | 167.07 | 0.4613 | -917.0 | -836.3 | |
| 0.00 | 6.27 | 0.00 | 3.51 | -24.52 | 326.62 | -6.55 | 167.12 | 0.4676 | -837.0 | -762.8 | |
| 0.00 | 3.52 | 0.00 | 1.98 | -24.95 | 326.40 | -6.77 | 166.93 | 0.4749 | -743.0 | -578.3 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.39 | 326.40 | -6.78 | 166.62 | 0.4664 | -632.0 | -650.4 | |
| 0.00 | 3.26 | 0.00 | 1.82 | -24.12 | 326.38 | -6.79 | 166.44 | 0.4625 | -896.0 | -827.5 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -24.69 | 326.15 | -7.02 | 166.33 | 0.4718 | -723.0 | -582.1 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -28.32 | 325.86 | -7.32 | 167.65 | 0.5262 | -730.0 | -566.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -25.09 | 326.00 | -7.18 | 166.26 | 0.4784 | -771.0 | -635.3 | |
| 0.00 | 2.83 | 0.00 | 1.58 | -24.09 | 325.99 | -7.18 | 165.68 | 0.4635 | -775.0 | -763.5 | |
| 0.00 | 2.92 | 0.00 | 1.64 | -24.79 | 325.92 | -7.26 | 165.94 | 0.4742 | -759.0 | -590.2 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.29 | 325.91 | -7.26 | 165.65 | 0.4668 | -793.0 | -681.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.96 | 325.60 | -7.57 | 164.87 | 0.4631 | -720.0 | -678.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -26.48 | 325.38 | -7.80 | 165.92 | 0.5011 | -718.0 | -533.8 | |
| 0.00 | 2.32 | 0.00 | 1.30 | -24.43 | 325.48 | -7.70 | 164.92 | 0.4705 | -590.0 | -553.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.21 | 324.80 | -8.37 | 162.83 | 0.4554 | -663.0 | -555.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -25.57 | 323.91 | -9.26 | 162.83 | 0.4940 | -661.0 | -569.9 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -21.90 | 323.81 | -9.36 | 159.91 | 0.4412 | -943.0 | -784.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -21.71 | 320.51 | -12.66 | 153.53 | 0.4588 | -768.0 | -664.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
