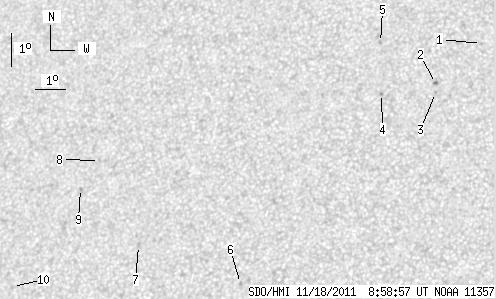

SDO HMI 2011-11-18 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.71 | 0.00 | 6.99 | 15.56 | 310.77 | -21.86 | 56.35 | 0.4339 | -203.2 | -151.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.64 | 19.12 | 317.40 | -15.22 | 40.77 | 0.3815 | -647.0 | -513.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 17.87 | 316.03 | -16.60 | 45.52 | 0.3827 | -918.0 | -754.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 17.60 | 316.06 | -16.57 | 46.02 | 0.3795 | -826.0 | -610.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 17.54 | 314.30 | -18.33 | 48.87 | 0.3998 | -760.0 | -527.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 19.11 | 314.09 | -18.53 | 46.18 | 0.4181 | -890.0 | -732.4 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 11.72 | 310.25 | -22.38 | 66.31 | 0.4088 | -656.0 | -508.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 12.80 | 306.75 | -25.87 | 66.70 | 0.4653 | 790.0 | 606.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 15.35 | 305.10 | -27.53 | 62.99 | 0.5024 | 659.0 | 491.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 14.48 | 304.56 | -28.07 | 64.97 | 0.5049 | 674.0 | 542.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 11.48 | 302.57 | -30.05 | 71.73 | 0.5189 | 542.0 | 454.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
