SDO HMI 2011-11-18 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.61 | 30.56 | 7.88 | 36.89 | 7.89 | 265.67 | -65.87 | 82.46 | 0.9135 | -238.2 | -45.4 | |
|
previous
or next observation for the same group /

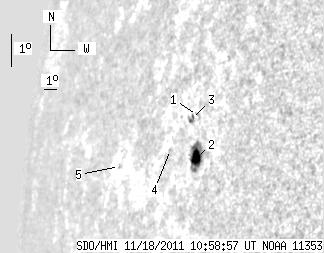

back to the solar disc SDO HMI 2011-11-18 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.92 | 0.00 | 3.52 | 8.86 | 265.66 | -65.88 | 81.39 | 0.9138 | 629.0 | 364.9 | |
| 6.61 | 21.89 | 7.88 | 26.11 | 7.62 | 265.99 | -65.55 | 82.76 | 0.9113 | -452.9 | -222.5 | |
| 0.00 | 4.12 | 0.00 | 5.06 | 8.76 | 265.25 | -66.29 | 81.52 | 0.9166 | 585.0 | 388.3 | |
| 0.00 | 1.29 | 0.00 | 1.66 | 7.78 | 263.96 | -67.58 | 82.61 | 0.9252 | -147.0 | -205.1 | |
| 0.00 | 0.34 | 0.00 | 0.54 | 7.10 | 259.75 | -71.79 | 83.34 | 0.9504 | -328.0 | -315.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
