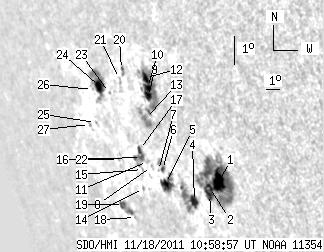

SDO HMI 2011-11-18 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.89 | 276.15 | 69.46 | 339.41 | -15.80 | 267.13 | -64.41 | 108.51 | 0.9161 | 92.0 | -30.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.28 | 111.95 | 16.98 | 124.90 | -16.62 | 270.11 | -61.43 | 109.96 | 0.8972 | 691.7 | 185.3 | |
| 2.32 | -1.00 | 2.64 | -1.00 | -16.81 | 269.41 | -62.12 | 110.01 | 0.9024 | 252.7 | 999999 | |
| 2.49 | -1.00 | 2.86 | -1.00 | -17.03 | 269.28 | -62.25 | 110.23 | 0.9037 | 361.7 | 999999 | |
| 6.10 | 24.81 | 7.30 | 30.09 | -17.30 | 268.09 | -63.45 | 110.28 | 0.9123 | 395.3 | -375.6 | |
| 3.69 | 14.59 | 4.71 | 18.49 | -16.81 | 266.31 | -65.23 | 109.41 | 0.9232 | -441.2 | -492.6 | |
| 1.72 | 5.32 | 2.18 | 6.75 | -16.37 | 266.37 | -65.17 | 108.95 | 0.9223 | -625.5 | -459.2 | |
| 0.00 | 1.12 | 0.00 | 1.43 | -16.41 | 266.04 | -65.49 | 108.94 | 0.9245 | -407.0 | -437.4 | |
| 0.00 | 1.03 | 0.00 | 1.35 | -16.31 | 265.58 | -65.96 | 108.74 | 0.9272 | -523.0 | -418.7 | |
| 3.09 | 46.27 | 3.81 | 56.66 | -14.09 | 266.69 | -64.85 | 106.56 | 0.9177 | 434.6 | 325.5 | |
| 3.00 | -9.00 | 3.69 | -9.00 | -13.81 | 266.76 | -64.77 | 106.27 | 0.9169 | 653.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 2.26 | -16.16 | 265.37 | -66.17 | 108.55 | 0.9284 | -540.0 | -480.4 | |
| 3.95 | -9.00 | 4.84 | -9.00 | -13.50 | 266.78 | -64.76 | 105.94 | 0.9164 | 564.6 | 999999 | |
| 0.00 | 11.59 | 0.00 | 14.72 | -14.80 | 266.07 | -65.47 | 107.22 | 0.9225 | -483.0 | -323.6 | |
| 0.00 | 1.37 | 0.00 | 1.89 | -17.04 | 264.44 | -67.10 | 109.33 | 0.9349 | 325.0 | 228.2 | |
| 0.00 | 0.94 | 0.00 | 1.28 | -16.43 | 264.79 | -66.74 | 108.74 | 0.9322 | -268.0 | -181.8 | |
| 1.55 | 12.02 | 2.07 | 16.22 | -16.05 | 264.98 | -66.56 | 108.37 | 0.9307 | -466.5 | -369.3 | |
| 1.46 | -16.00 | 1.95 | -16.00 | -15.80 | 264.98 | -66.55 | 108.11 | 0.9304 | 120.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 1.15 | -18.01 | 263.01 | -68.52 | 110.10 | 0.9439 | 138.0 | 131.4 | |
| 3.43 | 9.01 | 5.26 | 13.70 | -17.63 | 262.28 | -69.26 | 109.59 | 0.9474 | -502.1 | -294.6 | |
| 0.86 | 2.83 | 1.12 | 3.70 | -13.33 | 265.08 | -66.45 | 105.49 | 0.9273 | 197.5 | 250.7 | |
| 0.00 | 0.94 | 0.00 | 1.25 | -13.62 | 264.76 | -66.77 | 105.75 | 0.9296 | 22.0 | -29.6 | |
| 0.00 | 0.77 | 0.00 | 1.13 | -16.20 | 262.99 | -68.55 | 108.20 | 0.9423 | -217.0 | -190.9 | |
| 0.00 | 0.94 | 0.00 | 1.32 | -14.09 | 263.68 | -67.86 | 106.09 | 0.9365 | -505.0 | -458.1 | |
| 6.95 | 25.15 | 10.05 | 36.46 | -13.94 | 262.94 | -68.59 | 105.82 | 0.9407 | -575.8 | -347.8 | |
| 0.00 | 0.86 | 0.00 | 1.32 | -15.10 | 261.79 | -69.74 | 106.87 | 0.9479 | -409.0 | -420.5 | |
| 0.00 | 0.60 | 0.00 | 0.90 | -14.06 | 262.26 | -69.28 | 105.85 | 0.9446 | -139.0 | -81.6 | |
| 0.00 | 1.55 | 0.00 | 2.44 | -15.19 | 261.18 | -70.36 | 106.88 | 0.9512 | -158.0 | -159.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
