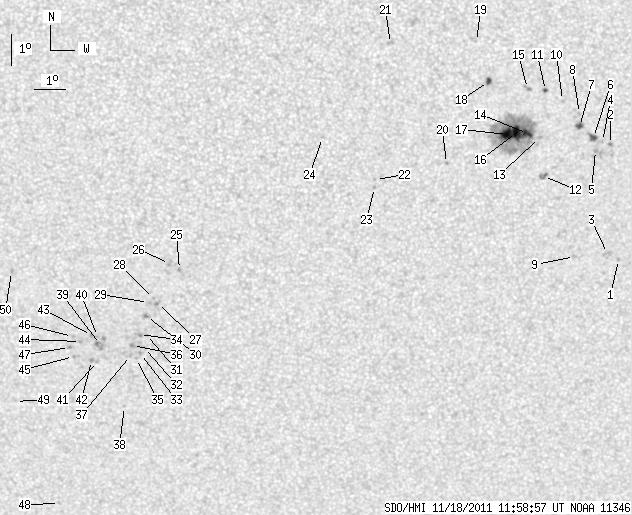

SDO HMI 2011-11-18 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.44 | 215.87 | 15.69 | 116.28 | -18.98 | 337.26 | 6.27 | 196.78 | 0.3924 | 101.6 | 201.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.86 | -21.55 | 343.36 | 12.37 | 206.12 | 0.4544 | 736.0 | 569.2 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -17.87 | 342.82 | 11.83 | 209.36 | 0.3996 | 954.0 | 787.5 | |
| 0.00 | 3.95 | 0.00 | 2.19 | -21.36 | 342.98 | 11.99 | 205.64 | 0.4491 | 727.0 | 562.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.77 | 342.56 | 11.57 | 208.94 | 0.3962 | 878.0 | 697.6 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -18.05 | 342.35 | 11.36 | 208.16 | 0.3986 | 902.0 | 805.5 | |
| 3.43 | 5.41 | 1.85 | 2.91 | -17.64 | 342.26 | 11.27 | 208.49 | 0.3922 | 971.7 | 772.2 | |
| 2.06 | 3.43 | 1.10 | 1.84 | -17.29 | 341.80 | 10.81 | 207.95 | 0.3837 | 1037.6 | 848.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -16.88 | 341.77 | 10.78 | 208.43 | 0.3777 | 777.0 | 648.8 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -21.44 | 341.92 | 10.93 | 203.56 | 0.4434 | 763.0 | 541.6 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -16.47 | 341.21 | 10.23 | 207.72 | 0.3676 | 598.0 | 415.9 | |
| 0.69 | 1.63 | 0.36 | 0.86 | -16.15 | 340.67 | 9.68 | 206.86 | 0.3590 | 900.9 | 855.7 | |
| 0.00 | 4.29 | 0.00 | 2.32 | -18.86 | 340.75 | 9.76 | 203.82 | 0.3989 | -797.0 | -781.4 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -17.63 | 340.55 | 9.56 | 204.77 | 0.3796 | 715.0 | 534.7 | |
| 4.72 | 127.99 | 2.52 | 68.26 | -17.50 | 340.17 | 9.18 | 204.04 | 0.3751 | 1043.4 | 517.8 | |
| 0.00 | 2.83 | 0.00 | 1.50 | -16.08 | 340.10 | 9.11 | 205.58 | 0.3539 | 923.0 | 736.7 | |
| 8.07 | -14.00 | 4.30 | -14.00 | -17.46 | 339.82 | 8.83 | 203.27 | 0.3724 | 1325.0 | 999999 | |
| 7.47 | -14.00 | 3.98 | -14.00 | -17.52 | 339.54 | 8.55 | 202.54 | 0.3715 | 1368.8 | 999999 | |
| 3.00 | 3.35 | 1.58 | 1.76 | -15.86 | 338.87 | 7.89 | 202.79 | 0.3423 | -949.9 | -757.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -14.61 | 338.46 | 7.47 | 203.20 | 0.3207 | 725.0 | 538.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.43 | 337.66 | 6.67 | 197.18 | 0.3749 | -840.0 | -604.8 | |
| 0.00 | 2.49 | 0.00 | 1.29 | -14.66 | 335.81 | 4.82 | 195.43 | 0.3069 | 810.0 | 704.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.93 | 335.45 | 4.46 | 191.40 | 0.3738 | 907.0 | 732.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -19.18 | 335.42 | 4.44 | 191.20 | 0.3778 | 820.0 | 649.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.59 | 333.76 | 2.78 | 187.66 | 0.3478 | 788.0 | 620.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -21.82 | 329.27 | -1.71 | 176.14 | 0.4142 | -876.0 | -745.0 | |
| 0.00 | 2.58 | 0.00 | 1.40 | -21.62 | 328.96 | -2.03 | 175.39 | 0.4114 | -866.0 | -798.6 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -22.93 | 328.55 | -2.44 | 174.78 | 0.4327 | -916.0 | -793.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.77 | 328.43 | -2.56 | 174.48 | 0.4303 | -918.0 | -689.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -22.90 | 328.26 | -2.73 | 174.16 | 0.4326 | -616.0 | -550.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.36 | 328.19 | -2.80 | 174.12 | 0.4399 | -899.0 | -785.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.95 | 328.18 | -2.81 | 174.25 | 0.4492 | -675.0 | -574.0 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.39 | 328.10 | -2.89 | 174.20 | 0.4561 | -657.0 | -468.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -24.59 | 327.97 | -3.02 | 173.98 | 0.4594 | -679.0 | -578.3 | |
| 0.00 | 2.40 | 0.00 | 1.33 | -23.95 | 327.95 | -3.04 | 173.78 | 0.4496 | -847.0 | -716.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -24.75 | 327.83 | -3.16 | 173.76 | 0.4622 | -700.0 | -541.2 | |
| 0.00 | 2.66 | 0.00 | 1.48 | -24.32 | 327.71 | -3.28 | 173.41 | 0.4557 | -901.0 | -741.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -24.65 | 327.64 | -3.35 | 173.35 | 0.4610 | -745.0 | -608.5 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.37 | 327.39 | -3.60 | 173.35 | 0.4876 | -719.0 | -546.4 | |
| 0.00 | 8.41 | 0.00 | 4.68 | -24.29 | 326.67 | -4.32 | 171.33 | 0.4574 | -905.0 | -790.6 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -24.02 | 326.58 | -4.41 | 171.06 | 0.4535 | -996.0 | -855.4 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.86 | 326.55 | -4.44 | 171.31 | 0.4663 | -603.0 | -505.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -24.82 | 326.36 | -4.63 | 170.92 | 0.4663 | -746.0 | -688.9 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -23.99 | 326.39 | -4.60 | 170.66 | 0.4535 | -924.0 | -741.6 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -24.19 | 326.02 | -4.97 | 170.02 | 0.4575 | -867.0 | -731.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -24.69 | 325.77 | -5.22 | 169.74 | 0.4658 | -712.0 | -645.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -24.03 | 325.77 | -5.22 | 169.45 | 0.4557 | -889.0 | -654.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -24.39 | 325.65 | -5.33 | 169.39 | 0.4616 | -759.0 | -602.4 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -29.72 | 325.05 | -5.94 | 170.42 | 0.5423 | -737.0 | -556.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -26.21 | 323.78 | -7.21 | 166.79 | 0.4949 | -725.0 | -651.6 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -21.90 | 323.89 | -7.10 | 164.47 | 0.4300 | -883.0 | -693.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
