SDO HMI 2011-11-18 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.41 | 33.14 | 9.84 | 39.51 | 7.71 | 265.40 | -65.59 | 82.65 | 0.9113 | -224.2 | -64.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

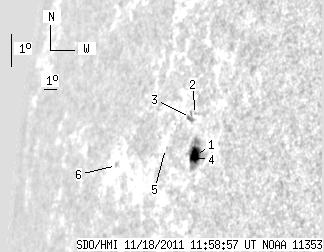

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.21 | 26.27 | 8.42 | 30.63 | 7.61 | 266.03 | -64.96 | 82.75 | 0.9071 | -479.4 | -162.6 | |
| 0.00 | 0.26 | 0.00 | 0.30 | 8.82 | 265.65 | -65.34 | 81.42 | 0.9100 | 693.0 | 676.7 | |
| 0.00 | 4.03 | 0.00 | 4.83 | 8.72 | 265.32 | -65.67 | 81.55 | 0.9123 | 627.0 | 414.6 | |
| 1.20 | -1.00 | 1.42 | -1.00 | 7.54 | 265.69 | -65.30 | 82.84 | 0.9095 | 173.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.87 | 7.73 | 263.75 | -67.24 | 82.65 | 0.9230 | -362.0 | -340.9 | |
| 0.00 | 1.89 | 0.00 | 2.88 | 7.06 | 259.80 | -71.19 | 83.38 | 0.9472 | -271.0 | -156.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
