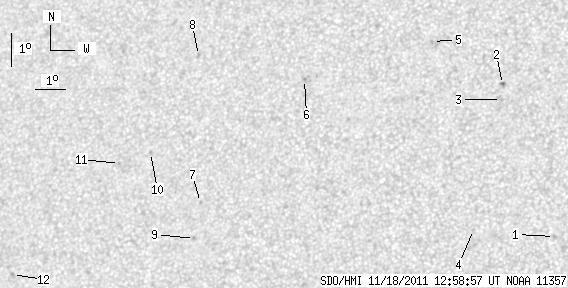

SDO HMI 2011-11-18 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.42 | 0.00 | 9.54 | 15.73 | 309.73 | -20.72 | 54.25 | 0.4185 | -135.3 | -103.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.93 | 13.36 | 318.24 | -12.20 | 47.29 | 0.2811 | -865.0 | -538.7 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 17.97 | 316.29 | -14.15 | 40.90 | 0.3567 | -901.0 | -697.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.51 | 316.30 | -14.14 | 41.80 | 0.3512 | -828.0 | -520.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 13.55 | 315.69 | -14.75 | 51.99 | 0.3155 | -647.0 | -422.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 19.27 | 313.90 | -16.54 | 42.76 | 0.3976 | -608.0 | -546.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 18.04 | 309.82 | -20.63 | 51.02 | 0.4327 | -829.0 | -680.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 14.24 | 306.80 | -23.64 | 61.91 | 0.4425 | 762.0 | 541.2 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 18.73 | 306.14 | -24.30 | 53.97 | 0.4840 | -744.0 | -545.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 13.15 | 306.71 | -23.73 | 64.27 | 0.4368 | 882.0 | 730.7 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 15.73 | 304.93 | -25.51 | 60.63 | 0.4777 | 703.0 | 614.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.38 | 303.91 | -26.53 | 62.14 | 0.4891 | 606.0 | 458.8 | |
| 0.00 | 1.97 | 0.00 | 1.14 | 11.95 | 300.65 | -29.79 | 70.70 | 0.5171 | 845.0 | 531.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
