SDO HMI 2011-11-18 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 9.18 | 1.12 | 4.77 | 7.42 | 346.99 | 17.09 | 286.80 | 0.3059 | 115.6 | 70.8 | |
|
previous
or next observation for the same group /

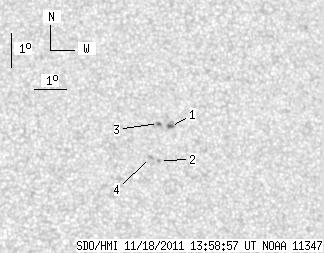

back to the solar disc SDO HMI 2011-11-18 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 4.03 | 0.94 | 2.10 | 7.76 | 347.27 | 17.38 | 287.65 | 0.3119 | 987.4 | 701.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 6.76 | 346.88 | 16.99 | 284.78 | 0.3015 | -845.0 | -695.6 | |
| 0.34 | 1.63 | 0.18 | 0.85 | 7.86 | 346.90 | 17.00 | 288.28 | 0.3065 | 992.5 | 861.4 | |
| 0.00 | 2.32 | 0.00 | 1.20 | 6.85 | 346.61 | 16.71 | 285.30 | 0.2974 | -778.0 | -582.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
