SDO HMI 2011-11-18 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.36 | 298.37 | 73.55 | 347.65 | -15.73 | 266.95 | -62.94 | 108.72 | 0.9060 | 41.0 | -30.0 | |
|
previous
or next observation for the same group /

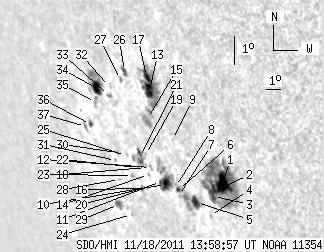

back to the solar disc SDO HMI 2011-11-18 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.76 | 113.28 | 15.55 | 119.90 | -16.62 | 270.15 | -59.75 | 110.33 | 0.8846 | 783.6 | 214.3 | |
| 1.37 | -1.00 | 1.48 | -1.00 | -16.86 | 269.58 | -60.31 | 110.47 | 0.8893 | 424.1 | 999999 | |
| 1.63 | -1.00 | 1.77 | -1.00 | -17.06 | 269.35 | -60.54 | 110.63 | 0.8914 | 302.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.33 | -17.68 | 268.81 | -61.09 | 111.19 | 0.8963 | 395.0 | 407.4 | |
| 6.26 | 20.85 | 7.09 | 23.91 | -17.30 | 268.11 | -61.78 | 110.62 | 0.9007 | 426.0 | -344.3 | |
| 1.72 | -5.00 | 2.00 | -5.00 | -16.93 | 267.12 | -62.77 | 110.01 | 0.9071 | -625.0 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.70 | -17.12 | 267.00 | -62.89 | 110.20 | 0.9082 | -541.0 | -513.7 | |
| 0.00 | 0.77 | 0.00 | 0.91 | -16.84 | 266.96 | -62.93 | 109.89 | 0.9081 | -648.0 | -621.8 | |
| 0.00 | 1.03 | 0.00 | 1.17 | -15.35 | 267.60 | -62.29 | 108.39 | 0.9015 | -405.0 | -312.2 | |
| 6.26 | 25.40 | 7.51 | 30.36 | -16.81 | 266.29 | -63.60 | 109.71 | 0.9126 | -593.3 | -512.1 | |
| 1.20 | -10.00 | 1.46 | -10.00 | -16.72 | 265.99 | -63.90 | 109.57 | 0.9145 | -252.1 | 999999 | |
| 0.00 | 2.23 | 0.00 | 2.74 | -16.31 | 265.53 | -64.36 | 109.03 | 0.9170 | -550.0 | -448.6 | |
| 8.32 | 47.03 | 9.62 | 54.11 | -13.87 | 266.80 | -63.09 | 106.63 | 0.9053 | 580.2 | 334.8 | |
| 0.00 | 1.12 | 0.00 | 1.39 | -16.54 | 265.24 | -64.65 | 109.22 | 0.9192 | -225.0 | -244.9 | |
| 0.00 | 12.87 | 0.00 | 15.27 | -14.76 | 266.21 | -63.68 | 107.48 | 0.9105 | -359.0 | -138.4 | |
| 0.00 | 0.86 | 0.00 | 1.09 | -16.99 | 264.87 | -65.02 | 109.64 | 0.9221 | -87.0 | -48.6 | |
| 4.29 | -13.00 | 4.94 | -13.00 | -13.44 | 266.81 | -63.08 | 106.16 | 0.9047 | 620.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.75 | -16.32 | 265.23 | -64.66 | 108.99 | 0.9190 | -340.0 | -387.9 | |
| 0.00 | 0.34 | 0.00 | 0.42 | -15.91 | 265.41 | -64.48 | 108.58 | 0.9173 | -296.0 | -302.5 | |
| 1.54 | 1.89 | 1.99 | 2.43 | -17.01 | 264.41 | -65.48 | 109.57 | 0.9250 | 332.3 | 303.8 | |
| 0.00 | 11.07 | 0.00 | 13.93 | -16.02 | 264.91 | -64.99 | 108.61 | 0.9208 | -599.0 | -319.4 | |
| 0.00 | 0.77 | 0.00 | 0.99 | -16.35 | 264.55 | -65.34 | 108.89 | 0.9234 | -520.0 | -522.1 | |
| 0.00 | 1.20 | 0.00 | 1.57 | -16.62 | 263.99 | -65.90 | 109.08 | 0.9272 | 29.0 | 67.1 | |
| 0.00 | 0.77 | 0.00 | 1.06 | -17.88 | 263.01 | -66.89 | 110.25 | 0.9345 | 56.0 | 92.7 | |
| 0.00 | 0.77 | 0.00 | 1.01 | -16.00 | 263.87 | -66.03 | 108.40 | 0.9273 | -413.0 | -436.7 | |
| 3.26 | 4.03 | 3.97 | 4.91 | -13.35 | 265.32 | -64.57 | 105.80 | 0.9150 | 232.0 | 149.3 | |
| 0.00 | 2.06 | 0.00 | 2.55 | -13.61 | 264.89 | -65.00 | 106.02 | 0.9181 | -69.0 | -146.3 | |
| 0.00 | 0.69 | 0.00 | 0.94 | -16.79 | 262.85 | -67.04 | 109.07 | 0.9343 | -311.0 | -318.9 | |
| 2.40 | 5.66 | 3.42 | 8.05 | -17.60 | 262.16 | -67.73 | 109.81 | 0.9391 | -516.9 | -411.1 | |
| 0.00 | 1.97 | 0.00 | 2.66 | -15.93 | 263.21 | -66.68 | 108.22 | 0.9313 | -696.0 | -526.8 | |
| 0.00 | 1.12 | 0.00 | 1.52 | -16.19 | 262.95 | -66.94 | 108.45 | 0.9331 | -294.0 | -236.3 | |
| 0.00 | 1.03 | 0.00 | 1.32 | -13.86 | 263.94 | -65.95 | 106.13 | 0.9246 | -544.0 | -503.0 | |
| 0.00 | 2.15 | 0.00 | 2.79 | -14.15 | 263.70 | -66.19 | 106.40 | 0.9264 | -608.0 | -551.5 | |
| 7.29 | 24.97 | 9.80 | 33.64 | -13.97 | 262.87 | -67.02 | 106.08 | 0.9314 | -568.6 | -303.1 | |
| 0.00 | 3.86 | 0.00 | 5.29 | -14.42 | 262.52 | -67.37 | 106.50 | 0.9339 | -525.0 | -413.8 | |
| 2.06 | 3.00 | 2.95 | 4.29 | -15.13 | 261.64 | -68.25 | 107.12 | 0.9397 | -505.0 | -498.8 | |
| 0.00 | 3.18 | 0.00 | 4.65 | -15.21 | 261.16 | -68.73 | 107.14 | 0.9425 | -188.0 | -131.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
