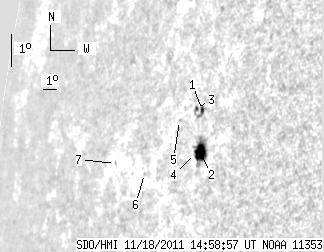

SDO HMI 2011-11-18 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.16 | 32.95 | 15.63 | 36.94 | 7.83 | 265.48 | -63.87 | 82.48 | 0.8987 | -287.7 | -59.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 4.98 | 1.81 | 5.53 | 8.82 | 265.79 | -63.56 | 81.37 | 0.8968 | 472.1 | 467.1 | |
| 9.87 | 22.74 | 10.85 | 25.03 | 7.57 | 266.02 | -63.33 | 82.76 | 0.8948 | -549.3 | -204.9 | |
| 1.20 | 2.57 | 1.35 | 2.90 | 8.87 | 265.36 | -63.98 | 81.34 | 0.9000 | 269.0 | 318.4 | |
| 1.46 | -2.00 | 1.62 | -2.00 | 7.53 | 265.69 | -63.65 | 82.82 | 0.8973 | 167.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.80 | 8.47 | 264.29 | -65.05 | 81.81 | 0.9078 | -275.0 | -242.1 | |
| 0.00 | 0.77 | 0.00 | 0.98 | 6.80 | 262.19 | -67.15 | 83.66 | 0.9224 | -287.0 | -301.1 | |
| 0.00 | 1.20 | 0.00 | 1.70 | 7.00 | 259.75 | -69.59 | 83.45 | 0.9379 | -328.0 | -257.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
