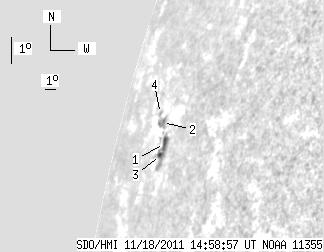

SDO HMI 2011-11-18 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.04 | 27.37 | 15.48 | 62.27 | 14.47 | 251.75 | -77.60 | 75.72 | 0.9768 | -333.4 | -186.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.32 | 18.36 | 11.65 | 40.60 | 14.31 | 252.17 | -77.18 | 75.88 | 0.9753 | -350.7 | -177.9 | |
| 0.00 | 7.64 | 0.00 | 18.22 | 14.91 | 251.14 | -78.21 | 75.28 | 0.9790 | -416.0 | -254.4 | |
| 1.72 | -1.00 | 3.83 | -1.00 | 13.93 | 252.02 | -77.32 | 76.27 | 0.9758 | -371.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 3.45 | 15.16 | 250.48 | -78.86 | 75.03 | 0.9812 | 96.0 | 109.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
