SDO HMI 2011-11-18 15:58:57 UT

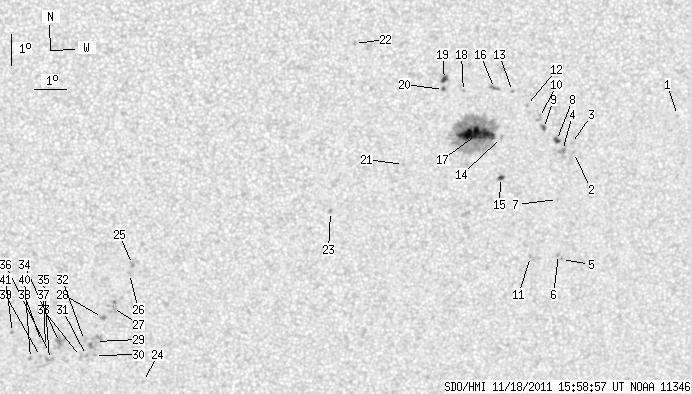

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.17 | 228.49 | 20.51 | 123.67 | -19.04 | 337.13 | 8.34 | 201.29 | 0.4042 | 275.0 | 143.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.96 | 346.22 | 17.43 | 220.90 | 0.4395 | 714.0 | 611.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.09 | 342.97 | 14.17 | 213.64 | 0.4220 | 795.0 | 550.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.80 | 342.88 | 14.09 | 213.87 | 0.4176 | 915.0 | 647.6 | |
| 0.00 | 3.86 | 0.00 | 2.10 | -18.02 | 342.61 | 13.82 | 213.06 | 0.4180 | 961.0 | 833.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -21.51 | 342.89 | 14.10 | 209.21 | 0.4662 | 759.0 | 650.9 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -21.35 | 342.77 | 13.98 | 209.20 | 0.4632 | 888.0 | 729.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.58 | 342.58 | 13.79 | 210.96 | 0.4382 | 792.0 | 560.6 | |
| 2.23 | 3.35 | 1.21 | 1.82 | -17.70 | 342.39 | 13.60 | 213.09 | 0.4120 | 1070.1 | 904.4 | |
| 1.97 | 2.23 | 1.07 | 1.21 | -17.32 | 341.95 | 13.15 | 212.77 | 0.4031 | 982.9 | 1037.3 | |
| 0.00 | 3.26 | 0.00 | 1.76 | -16.97 | 341.79 | 13.00 | 212.97 | 0.3972 | 610.0 | 761.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.40 | 341.86 | 13.07 | 207.55 | 0.4572 | 850.0 | 653.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -16.59 | 341.35 | 12.56 | 212.63 | 0.3883 | 986.0 | 758.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -16.15 | 340.88 | 12.09 | 212.30 | 0.3782 | 790.0 | 679.5 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -17.59 | 340.63 | 11.84 | 209.75 | 0.3958 | 769.0 | 576.8 | |
| 1.63 | 3.60 | 0.89 | 1.96 | -18.85 | 340.69 | 11.89 | 208.26 | 0.4137 | -616.8 | -498.0 | |
| 0.00 | 3.43 | 0.00 | 1.83 | -16.05 | 340.31 | 11.52 | 211.21 | 0.3720 | 1011.0 | 854.2 | |
| 28.14 | 133.08 | 15.11 | 71.45 | -17.49 | 339.83 | 11.04 | 208.20 | 0.3881 | 1206.6 | 455.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -16.13 | 339.34 | 10.55 | 208.92 | 0.3653 | -719.0 | -518.2 | |
| 3.00 | 3.52 | 1.59 | 1.86 | -15.75 | 338.73 | 9.94 | 208.02 | 0.3551 | -959.5 | -836.2 | |
| 1.20 | 1.54 | 0.64 | 0.82 | -16.06 | 338.71 | 9.92 | 207.56 | 0.3594 | -613.3 | -573.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.42 | 337.58 | 8.78 | 202.14 | 0.3861 | -815.0 | -598.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -14.61 | 335.89 | 7.10 | 202.16 | 0.3183 | 932.0 | 673.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -19.90 | 335.33 | 6.54 | 195.73 | 0.3969 | 768.0 | 594.7 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -25.45 | 329.46 | 0.67 | 181.28 | 0.4704 | -505.0 | -438.7 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -21.59 | 329.09 | 0.30 | 180.67 | 0.4096 | -1006.0 | -787.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.89 | 328.99 | 0.20 | 180.45 | 0.4142 | -858.0 | -663.6 | |
| 0.00 | 8.41 | 0.00 | 4.61 | -23.00 | 328.45 | -0.35 | 179.26 | 0.4319 | -795.0 | -700.1 | |
| 0.00 | 2.66 | 0.00 | 1.46 | -23.33 | 328.12 | -0.67 | 178.59 | 0.4372 | -1010.0 | -834.0 | |
| 0.00 | 9.52 | 0.00 | 5.28 | -24.12 | 327.89 | -0.90 | 178.17 | 0.4497 | -647.0 | -751.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -24.59 | 327.86 | -0.94 | 178.13 | 0.4570 | -573.0 | -527.2 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -24.59 | 327.60 | -1.20 | 177.61 | 0.4572 | -691.0 | -555.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -24.09 | 327.53 | -1.26 | 177.44 | 0.4494 | -696.0 | -696.3 | |
| 0.00 | 2.66 | 0.00 | 1.48 | -24.62 | 327.40 | -1.39 | 177.22 | 0.4578 | -657.0 | -543.5 | |
| 0.00 | 9.61 | 0.00 | 5.33 | -24.15 | 326.72 | -2.07 | 175.80 | 0.4512 | -1022.0 | -766.7 | |
| 0.00 | 3.95 | 0.00 | 2.20 | -24.72 | 326.39 | -2.40 | 175.23 | 0.4604 | -614.0 | -628.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -24.49 | 326.39 | -2.40 | 175.19 | 0.4568 | -735.0 | -629.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -24.29 | 326.26 | -2.53 | 174.90 | 0.4539 | -849.0 | -735.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -24.12 | 326.14 | -2.65 | 174.61 | 0.4515 | -849.0 | -773.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -24.62 | 326.09 | -2.70 | 174.63 | 0.4593 | -699.0 | -538.3 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.69 | 325.77 | -3.02 | 174.00 | 0.4609 | -718.0 | -664.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -23.83 | 325.20 | -3.59 | 172.64 | 0.4485 | -928.0 | -738.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
