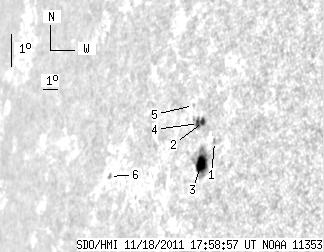

SDO HMI 2011-11-18 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.89 | 43.15 | 14.53 | 45.61 | 7.89 | 265.65 | -62.04 | 82.38 | 0.8844 | -193.0 | -54.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.84 | 8.26 | 266.71 | -60.98 | 81.92 | 0.8761 | 345.0 | 339.7 | |
| 2.14 | 9.18 | 2.25 | 9.71 | 8.83 | 265.85 | -61.83 | 81.30 | 0.8832 | 582.7 | 319.3 | |
| 9.18 | 29.00 | 9.55 | 30.22 | 7.58 | 266.06 | -61.62 | 82.72 | 0.8812 | -626.4 | -143.6 | |
| 2.57 | -2.00 | 2.73 | -2.00 | 8.76 | 265.55 | -62.14 | 81.40 | 0.8856 | 553.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.48 | 9.28 | 265.07 | -62.62 | 80.83 | 0.8897 | -318.0 | -295.7 | |
| 0.00 | 1.80 | 0.00 | 2.36 | 6.95 | 259.71 | -67.98 | 83.50 | 0.9278 | -250.0 | -184.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
