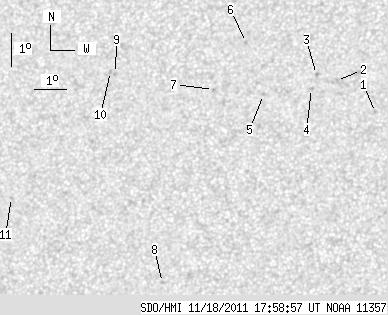

SDO HMI 2011-11-18 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.70 | 0.00 | 6.70 | 17.14 | 313.67 | -14.02 | 41.89 | 0.3489 | -639.5 | -586.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-18 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.96 | 318.40 | -9.29 | 31.62 | 0.2958 | -760.0 | -622.3 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 17.93 | 317.12 | -10.57 | 33.14 | 0.3207 | -739.0 | -723.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 18.11 | 316.47 | -11.22 | 34.36 | 0.3290 | -979.0 | -723.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 17.68 | 316.34 | -11.35 | 35.46 | 0.3246 | -702.0 | -600.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.48 | 314.83 | -12.86 | 39.22 | 0.3372 | -660.0 | -461.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 19.08 | 314.16 | -13.53 | 37.61 | 0.3638 | -799.0 | -778.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.62 | 313.22 | -14.47 | 42.19 | 0.3561 | -797.0 | -749.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 11.75 | 312.02 | -15.67 | 58.37 | 0.3120 | -738.0 | -473.3 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 18.07 | 310.00 | -17.69 | 46.83 | 0.3977 | -880.0 | -721.9 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 18.13 | 309.83 | -17.86 | 46.97 | 0.4003 | -659.0 | -604.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 14.25 | 306.99 | -20.70 | 58.87 | 0.4019 | 679.0 | 552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
